The Exterior Assembly of the Ultraloq products is water-resistant and dust tight, but the Interior Assembly is not suitable for outdoor use due to the battery box. We do not recommend using our product on outdoor gates or anything similar.
Please confirm the door dimensions before the installation.
| Model | Door Edge Thickness | Backset Dimension | Door Hole Diameter |
For Thicker Doors Between 2'' to 2-3/4" |
|||
| inch | mm | inch | mm | inch | mm | ||
| U-Bolt Series | 1-3/8''~1-3/4'' | 35mm~45mm |
2-3/8'' or 2-3/4'' |
60mm or 70mm |
1-1/2'' or 2-1/8'' |
38mm or 53mm |
ULTRALOQ Thick Door Kit(Deadbolt) |
| UL3 Series | 1-3/8''~1-3/4'' | 35mm~44mm |
2-3/8'' or 2-3/4'' |
60mm or 70mm |
2-1/8'' | 53mm | ULTRALOQ Thick Door Kit |
| Latch 5 Series | 1-3/8''~1-3/4'' | 35mm~44mm |
2-3/8'' or 2-3/4'' |
60mm or 70mm |
2-1/8'' | 53mm | ULTRALOQ Thick Door Kit |
| Lever | 1-5/16''~2'' | 33mm~50mm |
2-3/8'' or 2-3/4'' |
60mm or 70mm |
2-1/8'' | 53mm | × |
| UL1/Combo | 1-5/16''~2'' | 33mm~50mm |
2-3/8'' or 2-3/4'' |
60mm or 70mm |
2-1/8'' | 53mm | × |
> Ultraloq U-Bolt Series

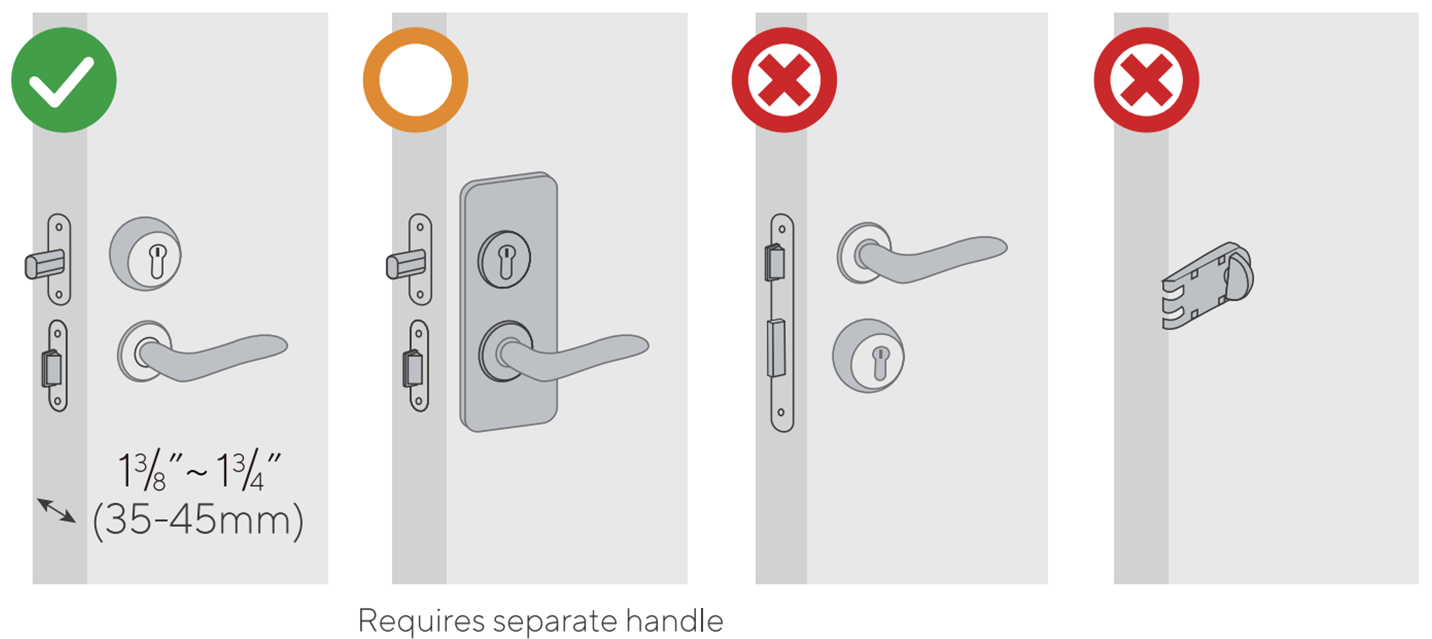

The Ultraloq U-Bolt Series can replace the most common deadbolt locks. Please confirm the door dimensions before the installation.
Working Temperature
Exterior Assembly: -22 ̊F (-30 ̊C) to 149 ̊F (65 ̊C)
Interior Assembly: 14 ̊F (-10 ̊C) to 131 ̊F (55 ̊C)
FAQ:
>My door is a 2-2 1⁄4 " wood door, is there any way that this product can work with this thickness?
For Thicker Doors Between 2'' to 2-2 1⁄4", please order the Ultraloq Thick Door Kit.
> Ultraloq UL3 Series & Ultraloq Latch 5 Series

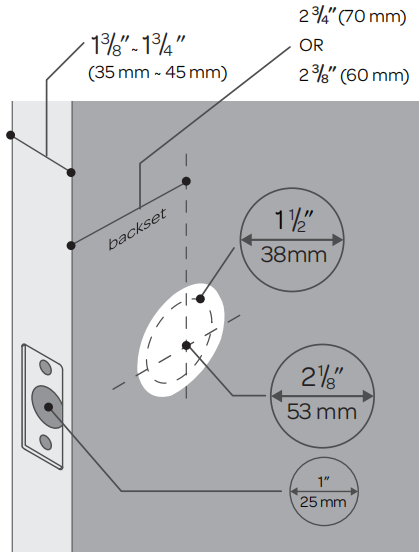

Door Dimensions
1. Please check the standard dimensions of the door for the Ultraloq UL3 Series & Ultraloq Latch 5 Series
2. If the thickness of your door is between 42mm to 44mm, you'll need to install the spring accessory into the hole of the inside handle.
3. For Thicker Doors Between 2'' to 2-3/4", please order the Ultraloq Thick Door Kit.
Lock Dimension
1. The lock's dimensions on the door are: 7''(H) x 2.7''(W) x 3.5''(D)
2. If there is a Security Door, the distance between the Front Door and the Security Door must be more than 3.5''.
3. For the deadbolt hole installation problem, please take a look at this guide.
Working Temperature
Exterior Assembly: -31°F (-35°C) to 158°F (70°C)
Interior Assembly: 14°F (-10°C) to 131°F (55°C)

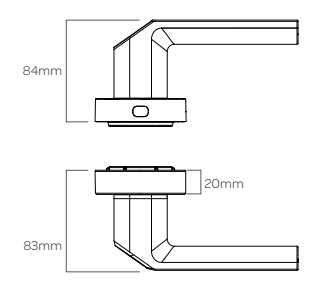

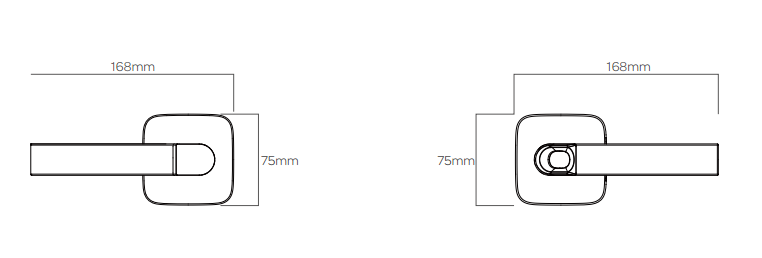

> Ultraloq Lever
Ultraloq Lever is designed for single-hole doors, doors without a deadbolt. Please check the below picture to confirm the standard single-hole door has been ready.
Working Temperature
Exterior Assembly: -4 °F ~ 149 °F (-20 °C ~ 65 °C)
Interior Assembly: 14 °F ~ 131 °F (-10 °C ~ 55 °C)
> Ultraloq UL1/Combo
The Ultraloq UL1/Combo can replace the most common front door locks. Please confirm the door dimensions before the installation.

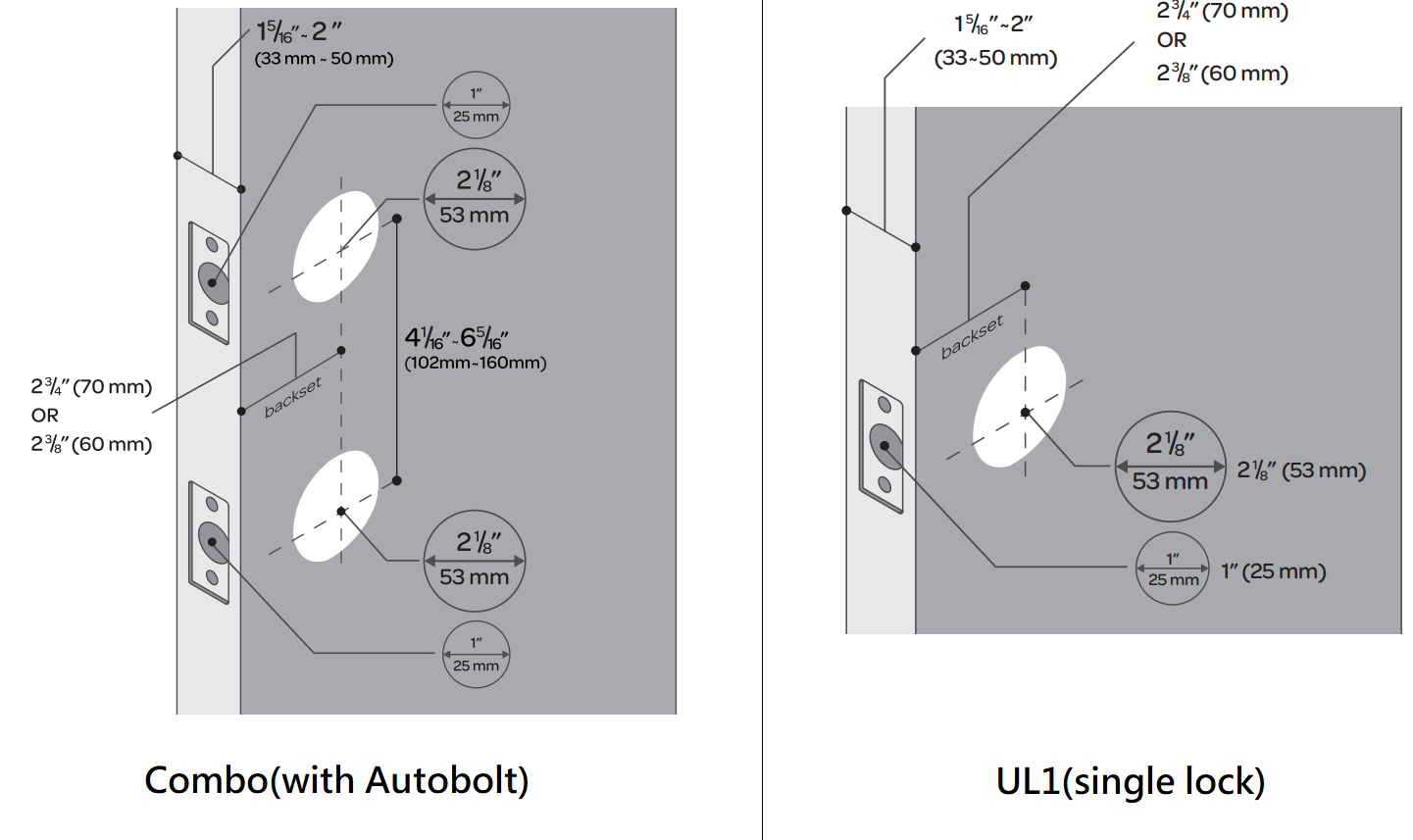

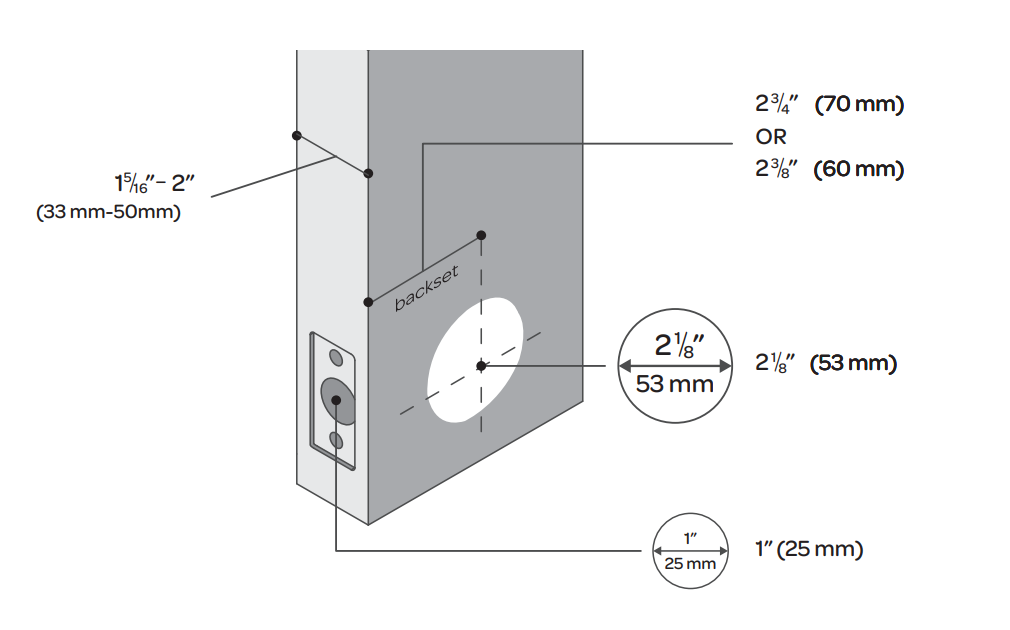

Door Dimensions:

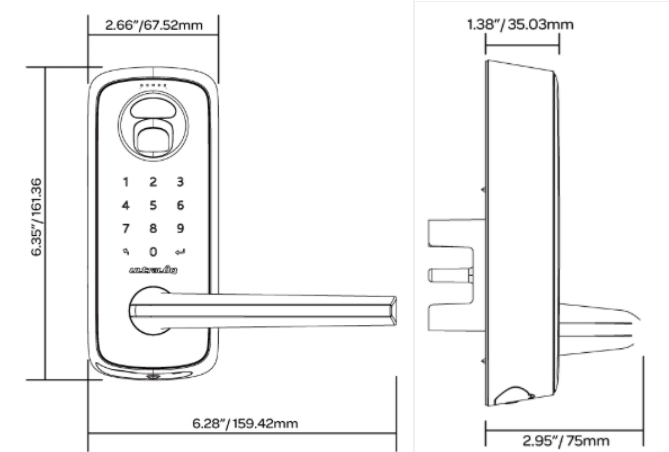

Lock's Dimensions:
Working Temperature
Exterior Assembly: -4 ̊F (-20 ̊C) to 149 ̊F (65 ̊C)
Interior Assembly: 14 ̊F (-10 ̊C) to 131 ̊F (55 ̊C)
> Ultraloq UL300
Please confirm the door dimensions before the installation.

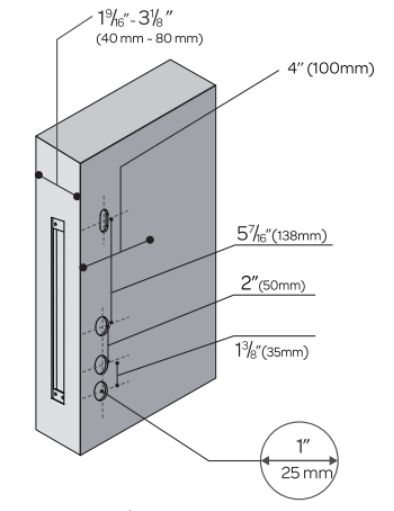

Door dimensions:
Or you can click to download UL300 Drill Template.

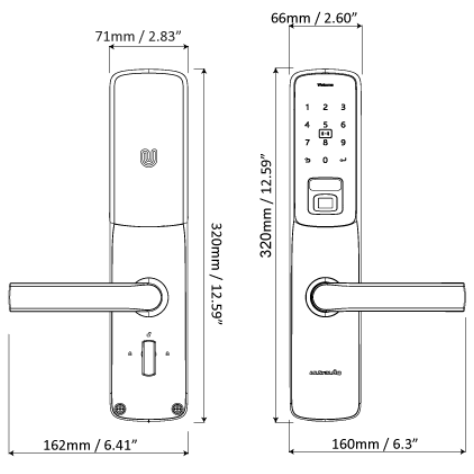

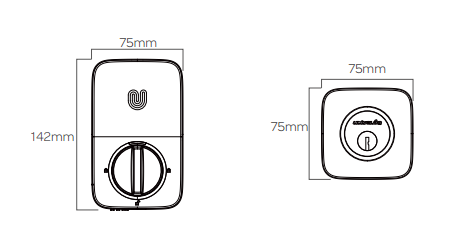

Lock's Dimensions:
Working Temperature
Exterior Assembly: -4 ̊F (-20 ̊C) to 149 ̊F (65 ̊C). Do not expose to direct rain
Interior Assembly: 14 ̊F (-10 ̊C) to 131 ̊F (55 ̊C)
> Ultraloq Bridge

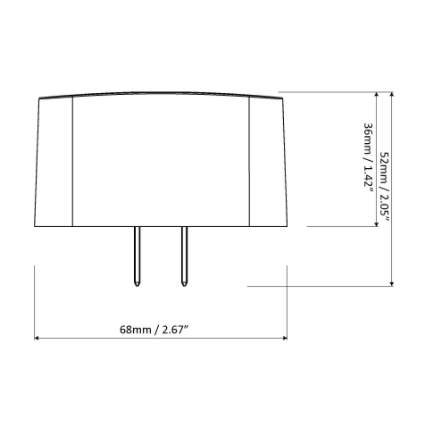

2.05” (H) x 0.8” (W) x 2.5” (L) / 5.2 cm (H) x 2 cm (W) x 6.35 cm (L)
100-240V, 50-60Hz, 0.1A, Standard North American power outlet.
- Ultraloq Smart Lock is a Bluetooth lock, and you can use the U-tec App to connect the lock via Bluetooth. The Bluetooth connection distance is around 10ft. If you need to activate the remote control feature, please must use Ultraloq Bridge. The Bridge is an adapter between Bluetooth and Wifi.
- One Ultraloq Bridge is needed for each Ultraloq for best performance and stability.
- Ultraloq Bridge can work with Google Assistance, Alexa, IFTTT, and SmartThings.
If you'd like to know more about how to install it, please click here to see some videos for your reference.
