How to Set Up U-Bolt/U-Bolt Pro Z-Wave with SmartThings?

This method only works with U-bolt Z-Wave or U-Bolt Pro Z-Wave.

If you have other models that work with a bridge or have built-in WiFi chips, please check

How to Set Up SmartThings with Ultraloq?



Required hardware:
1. Ultraloq U-Bolt Z-Wave or U-Bolt Pro Z-Wave.

2. Samsung Hub

Required App:
1. U-tec App.

2. Samsung SmartThings App



How to set up?

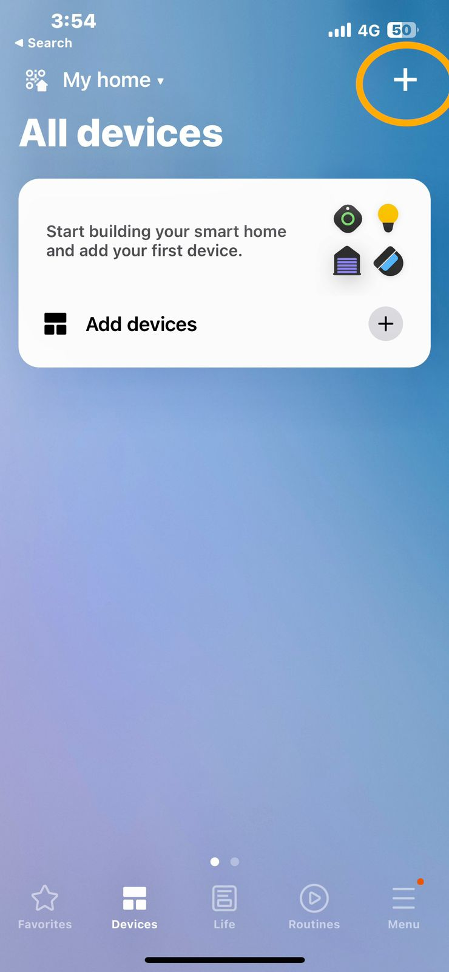

Step 1.  Open the SmartThings App, choose the Devices, then tap the upper-right corner"+" sign.

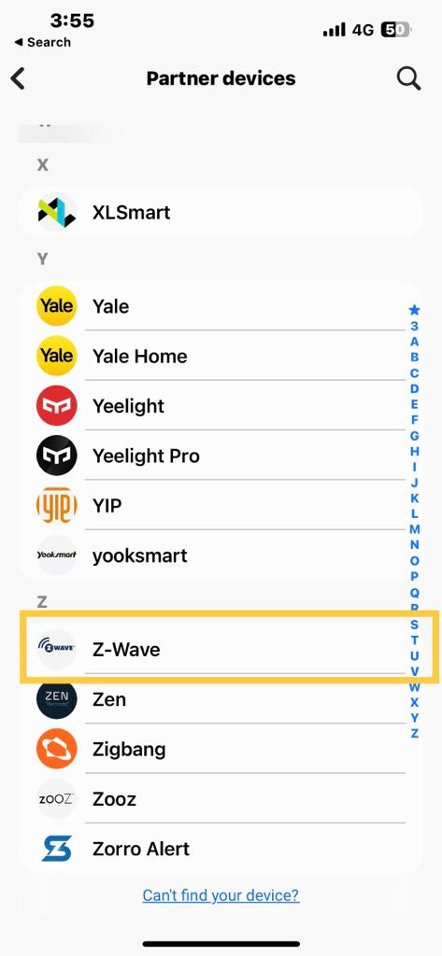

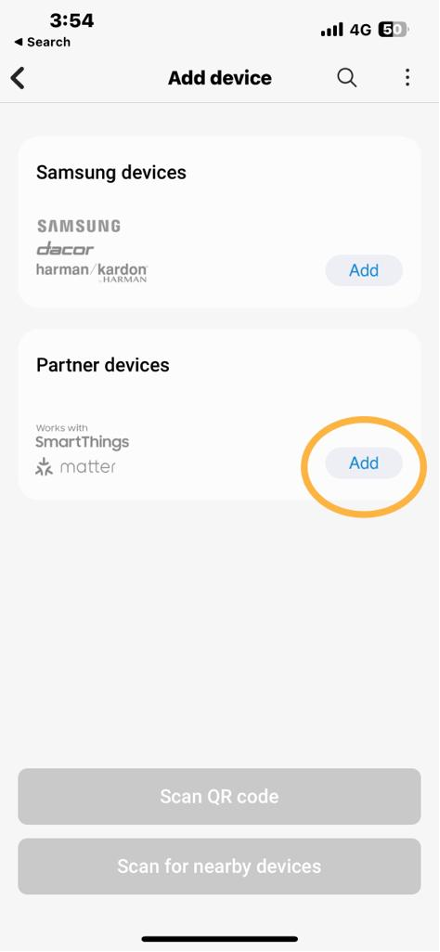

Step 2. Tap Partner devices, then tap Z-Wave.

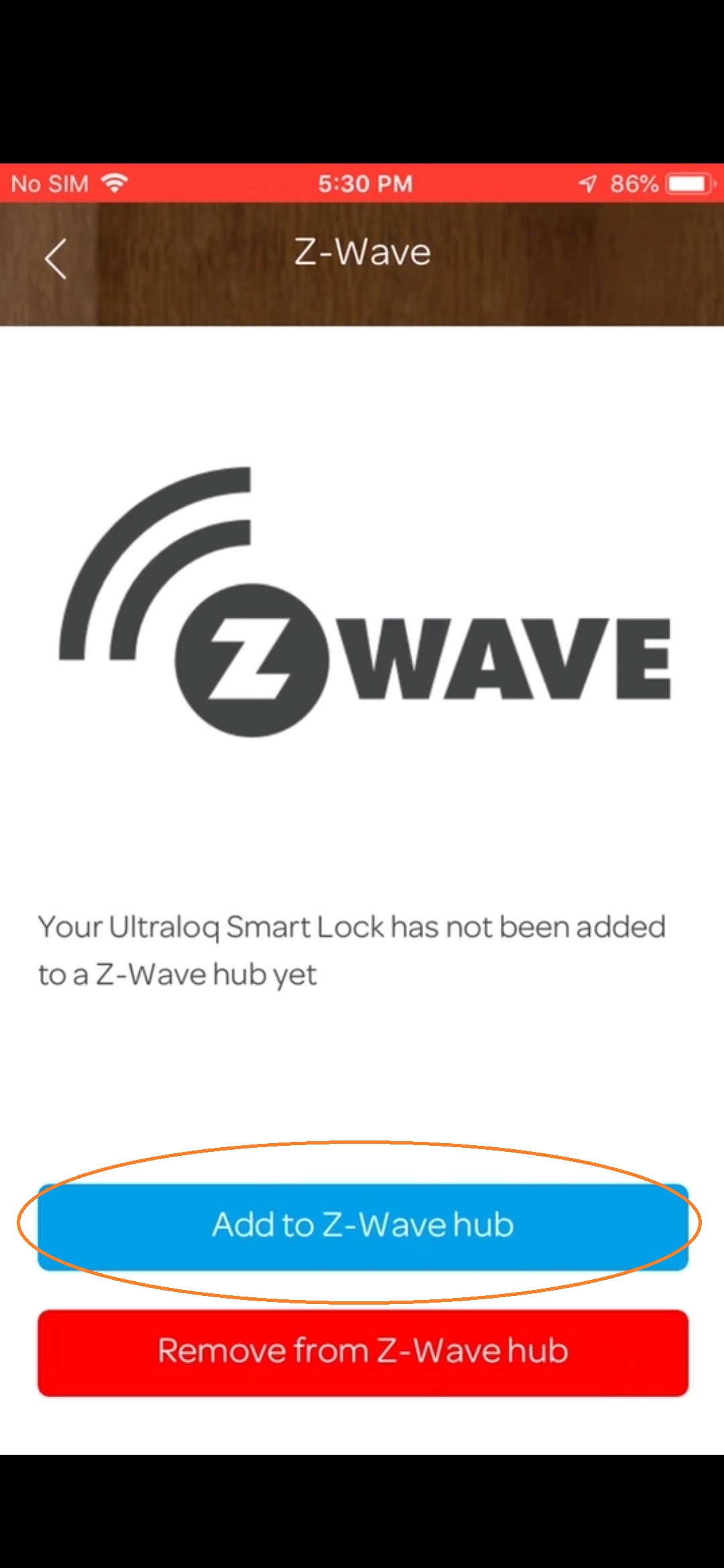

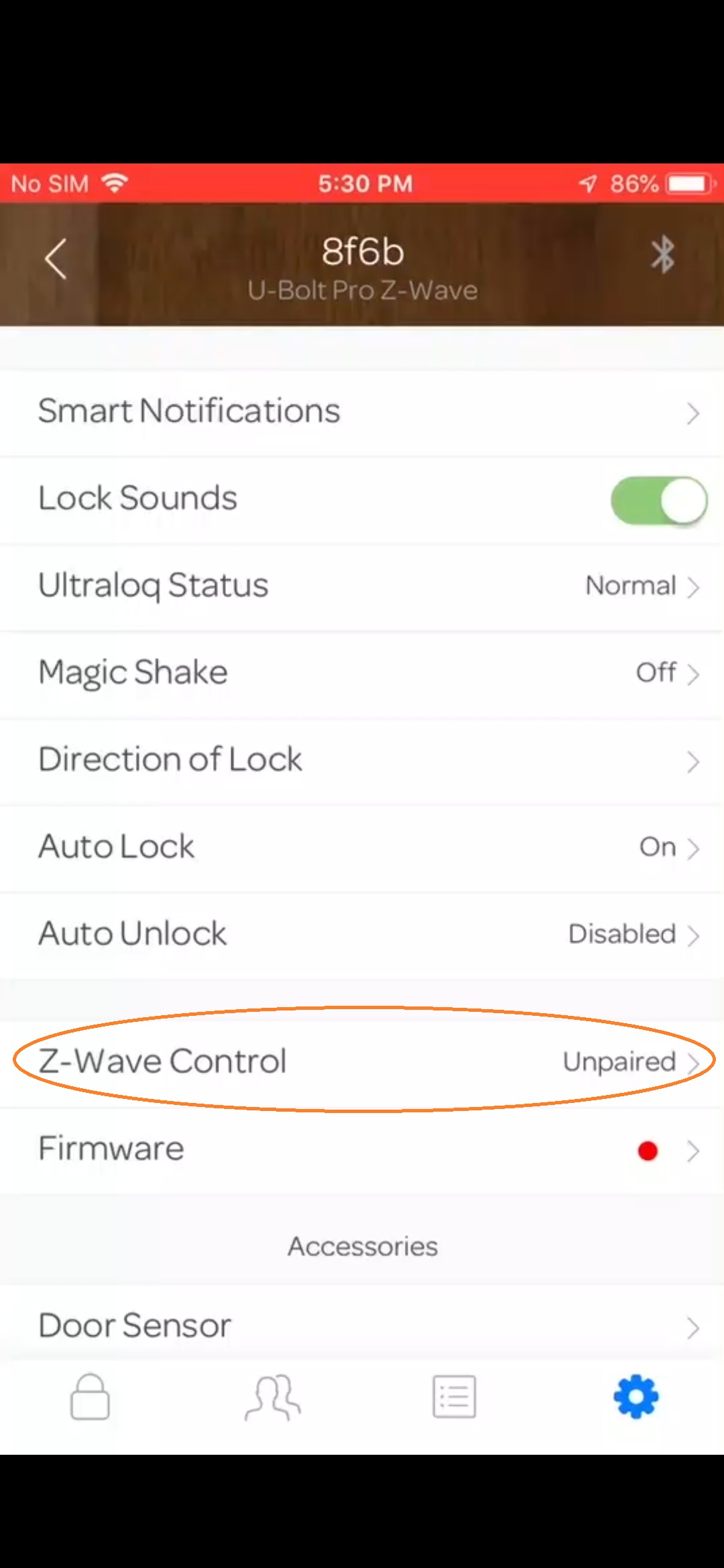

Step 3. Open U-tec app--U-Bolt Z-Wave--Settings--Z-Wave control. Tap Add to Z-Wave hub.

5.jpg     6.jpg

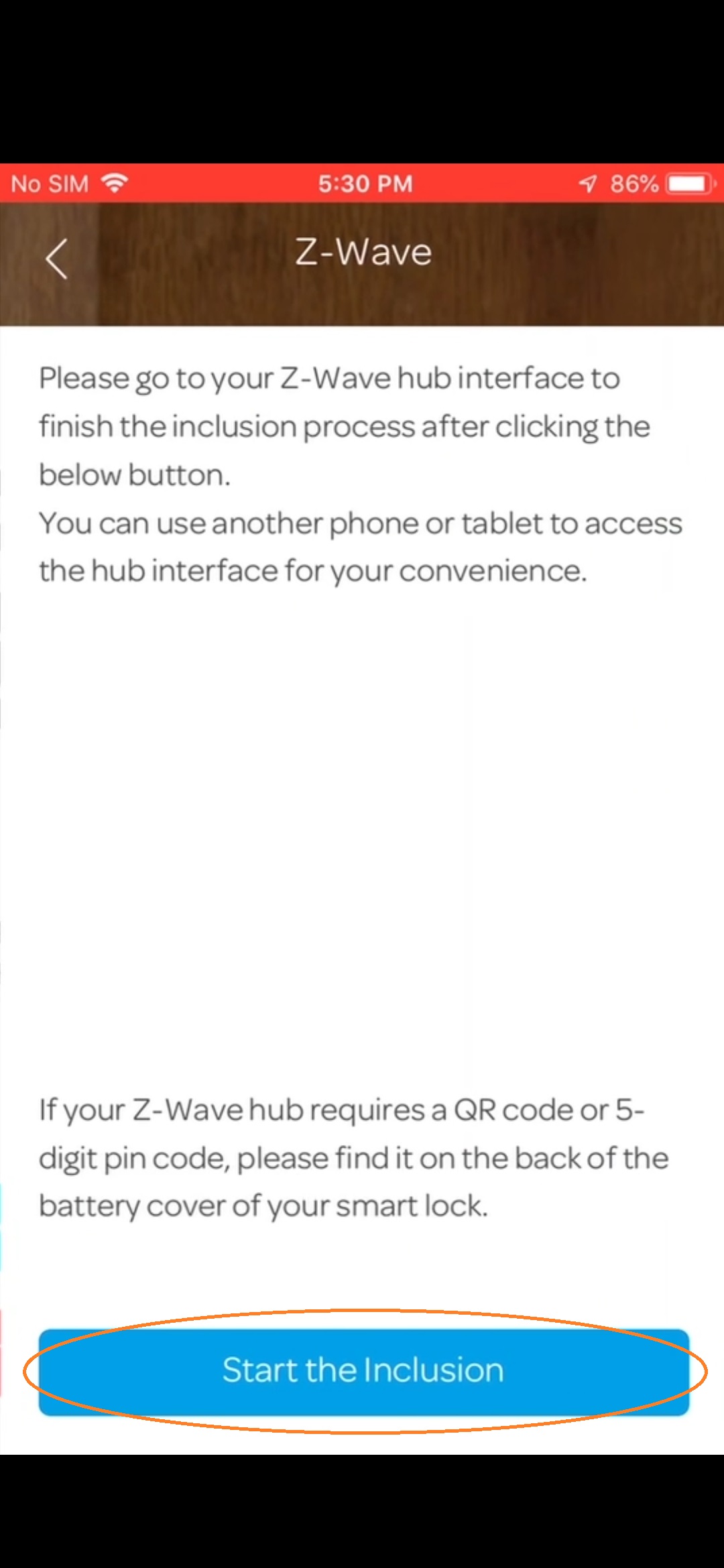

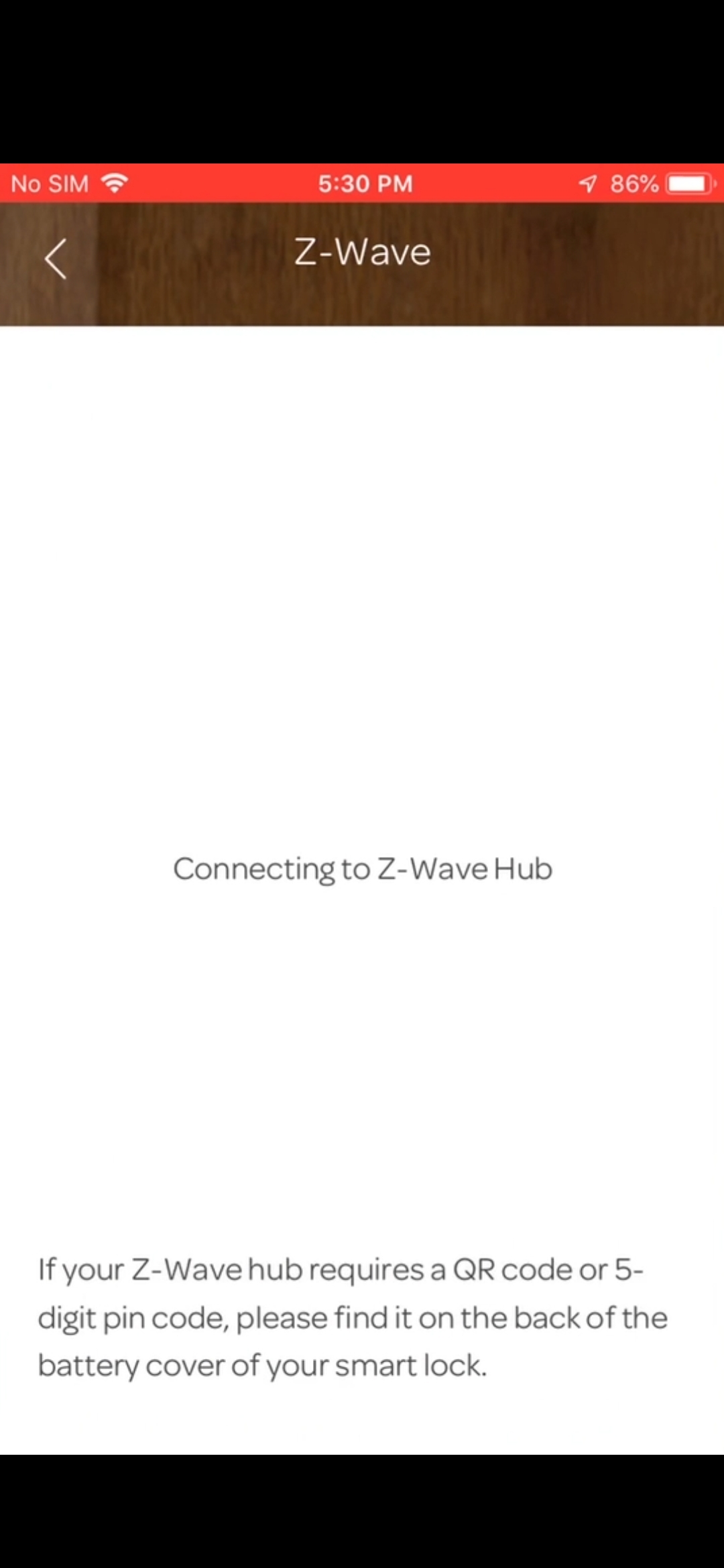

Step 4. Tap Start the Inclusion, and the app will show the "Connecting to Z-Wave Hub", keep this interface running then open the SmartThings App.

7.jpg     7.5.jpg



Step 5. Open the SmartThings app, then tap the Start button then tap Next. During this step, please don't swap the app until the app asks you to scan the QR code or input the PIN code.

8.jpg     9.jpg

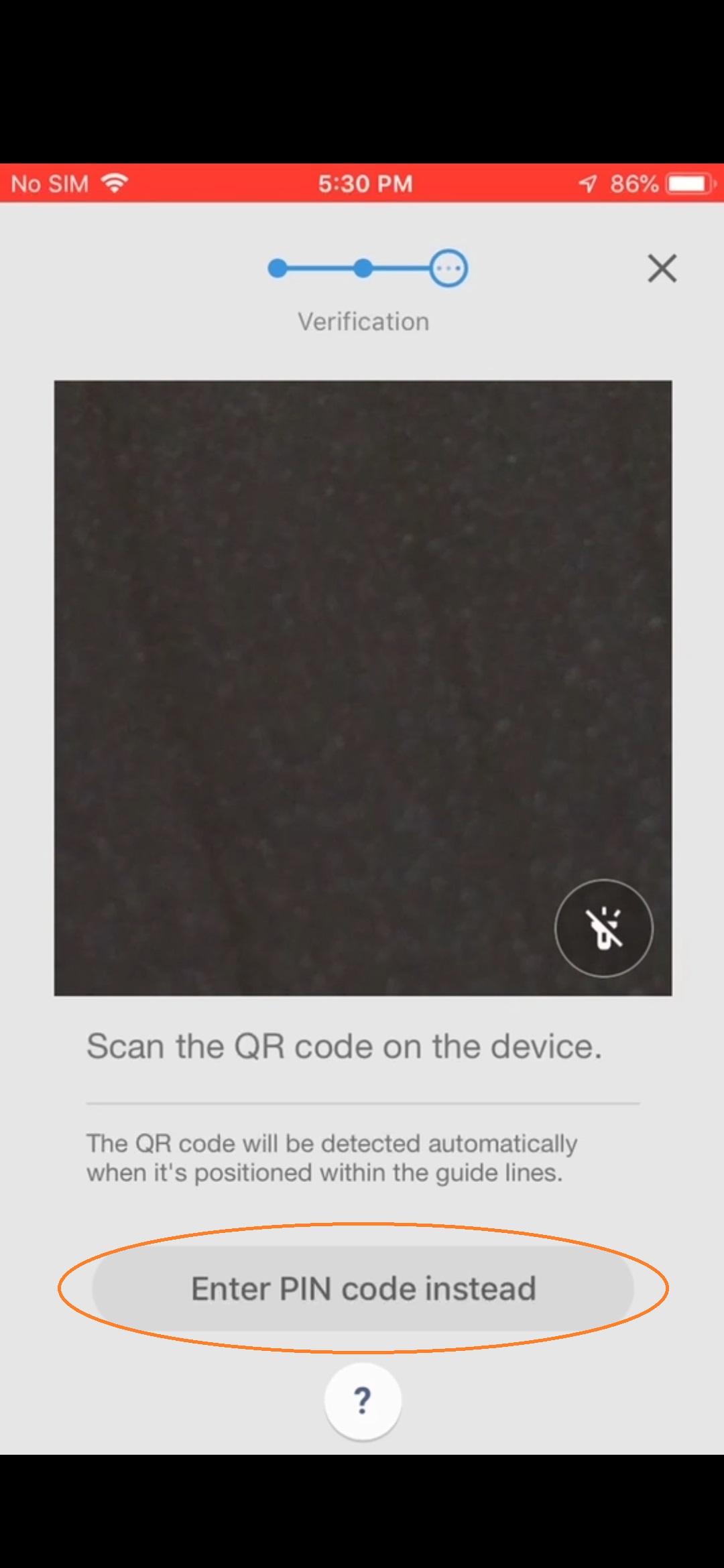

Step 6. Scan the QR code or Enter the PIN code. You can find the QR code and pin code on the battery cover. After scanning or entering the code. tap Add Device.

10.jpg     11.jpg

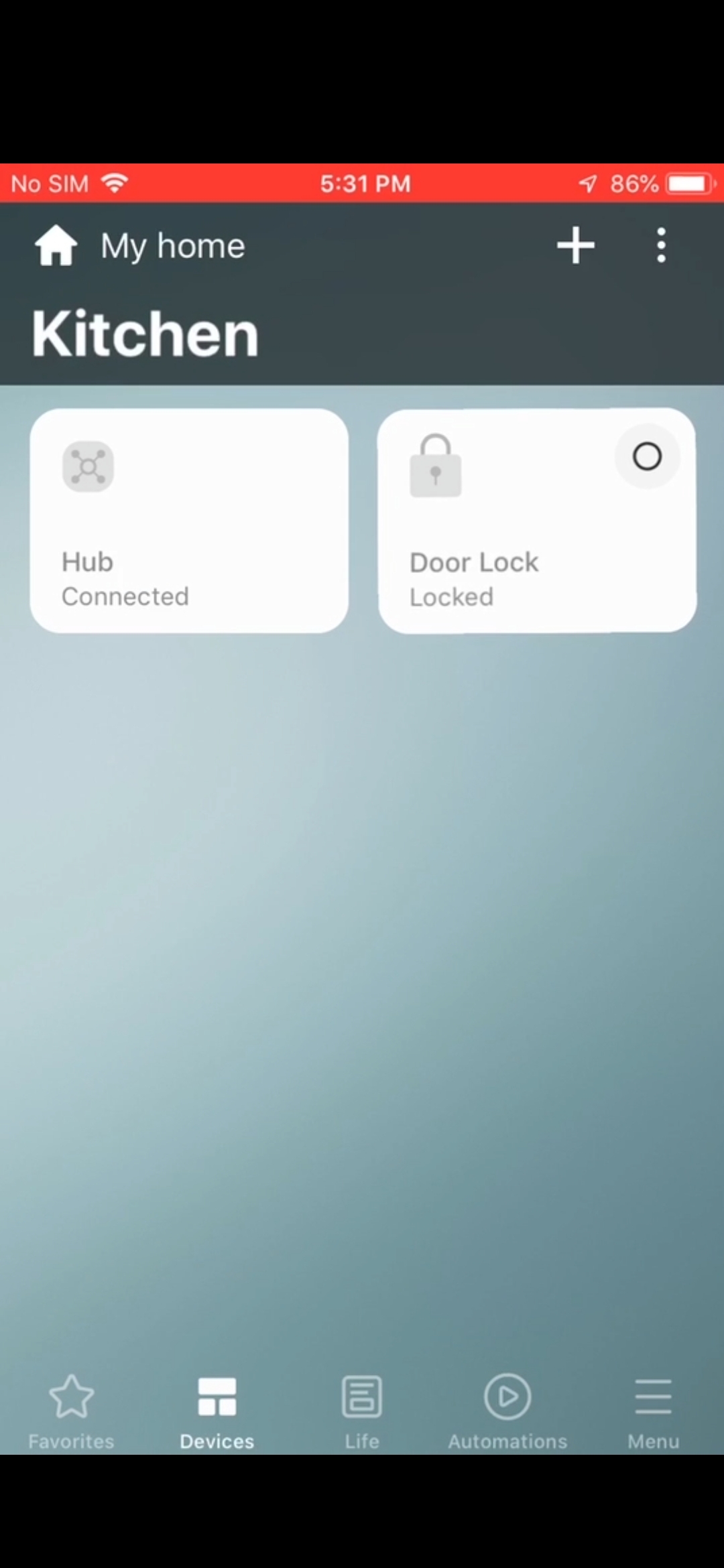

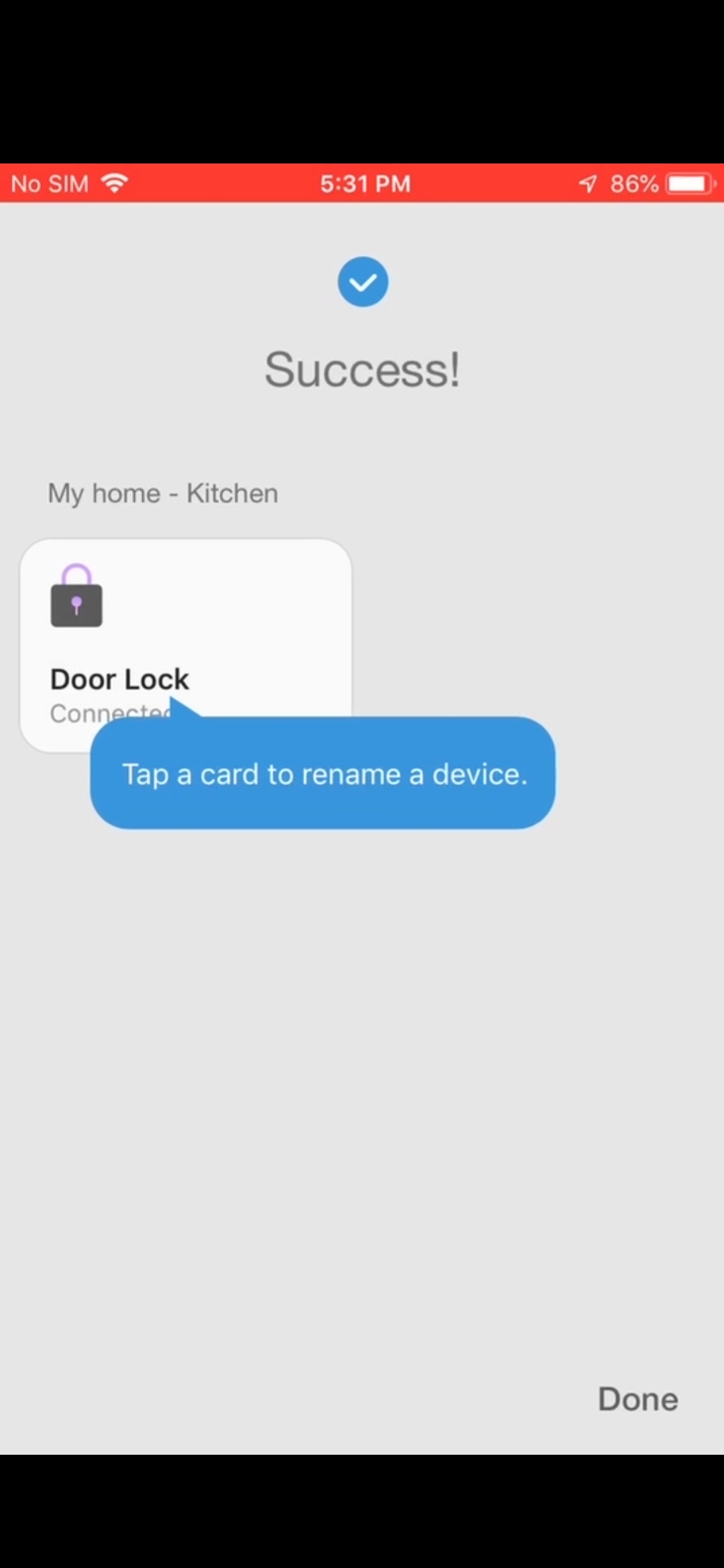

Step 7. Set up success, you can find the new device under the device list.

12.jpg     13.jpg

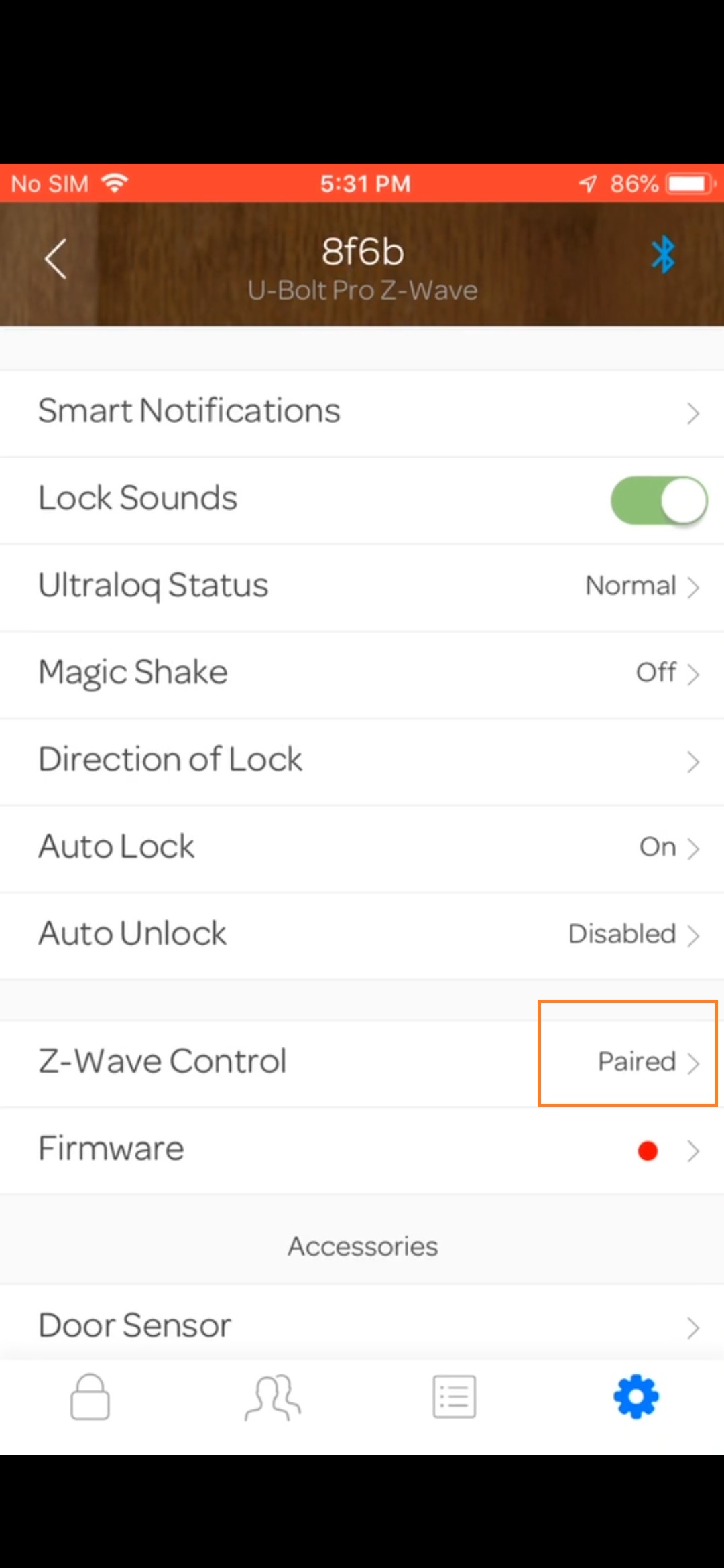

Step 7. Open the U-tec app, you will find the status of Z-Wave Control turns to Paired.




How to set disconnect?

Step 1. Open the SmartThings app, find the Hub, tap it then tap the upper-right button.

15.jpg     16.jpg



Step 2.  Choose Z-Wave utilities, then tap Z-Wave exclusion. Keep the SmartThings app running, then open the U-tec app.

17.jpg     18.jpg



Step 3. Open the U-tec app--U-Bolt Z-Wave--Settings--Z-Wave control. Tap Remove from Z-Wave hub.

19.jpg     20.jpg

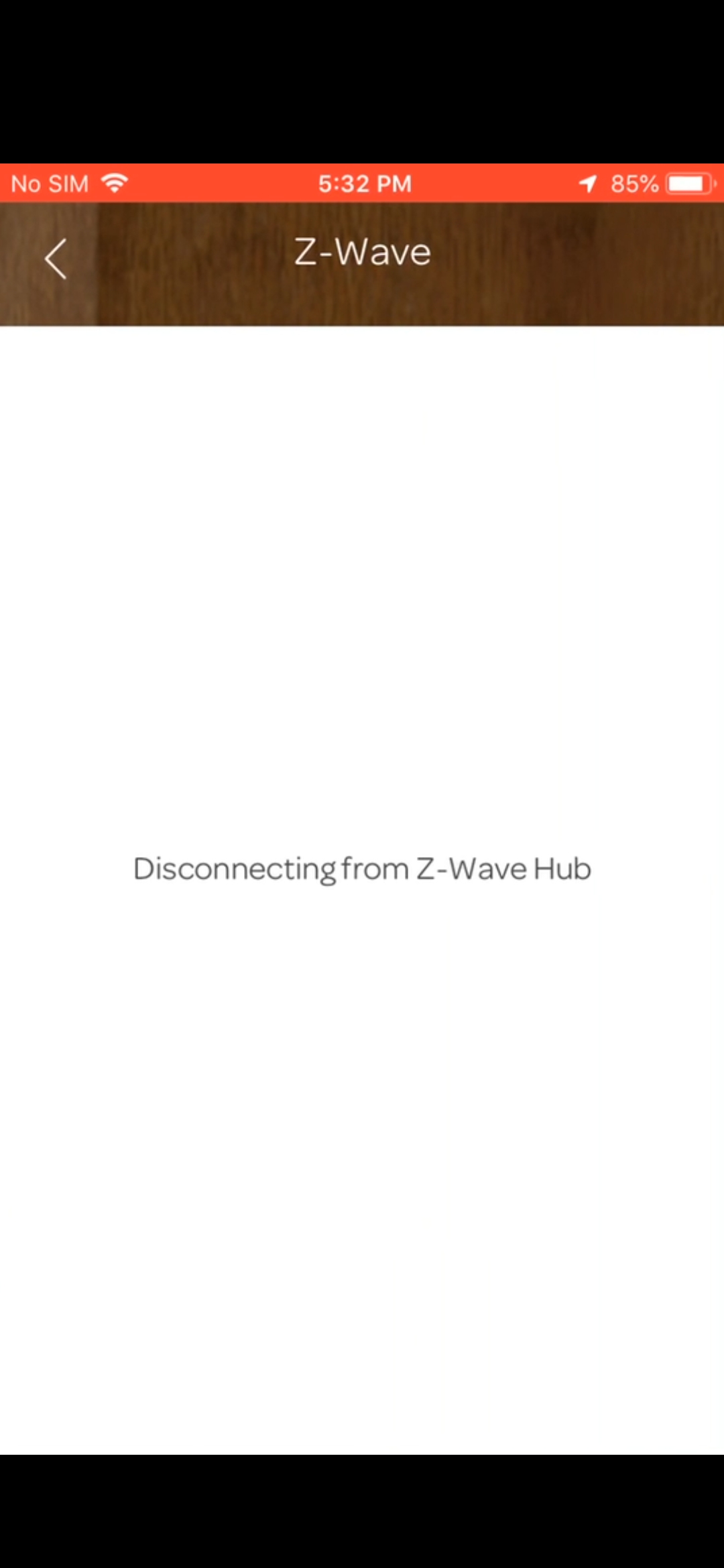

Step 4. The app will turn to the "Disconnecting from Z-Wave Hub" page. After a few seconds, the device will be removed successfully.

22.jpg     23.jpg
