How to Set Up Auto Lock for Ultraloq U-Bolt Series & Bolt Series?

Ultraloq Smart Lock can relock automatically for added security and convenience. Auto Lock feature is enabled in the factory default mode. Please follow this article to learn how to set up the Auto Lock feature.

Ultraloq U-Bolt Series & Bolt Series Auto Lock is enabled for 30 seconds for the factory default mode. You can enable, disable, and set the timer for the Auto Lock function.



U-tec App Operation

Step 1. Open the U-tec App and select the lock.

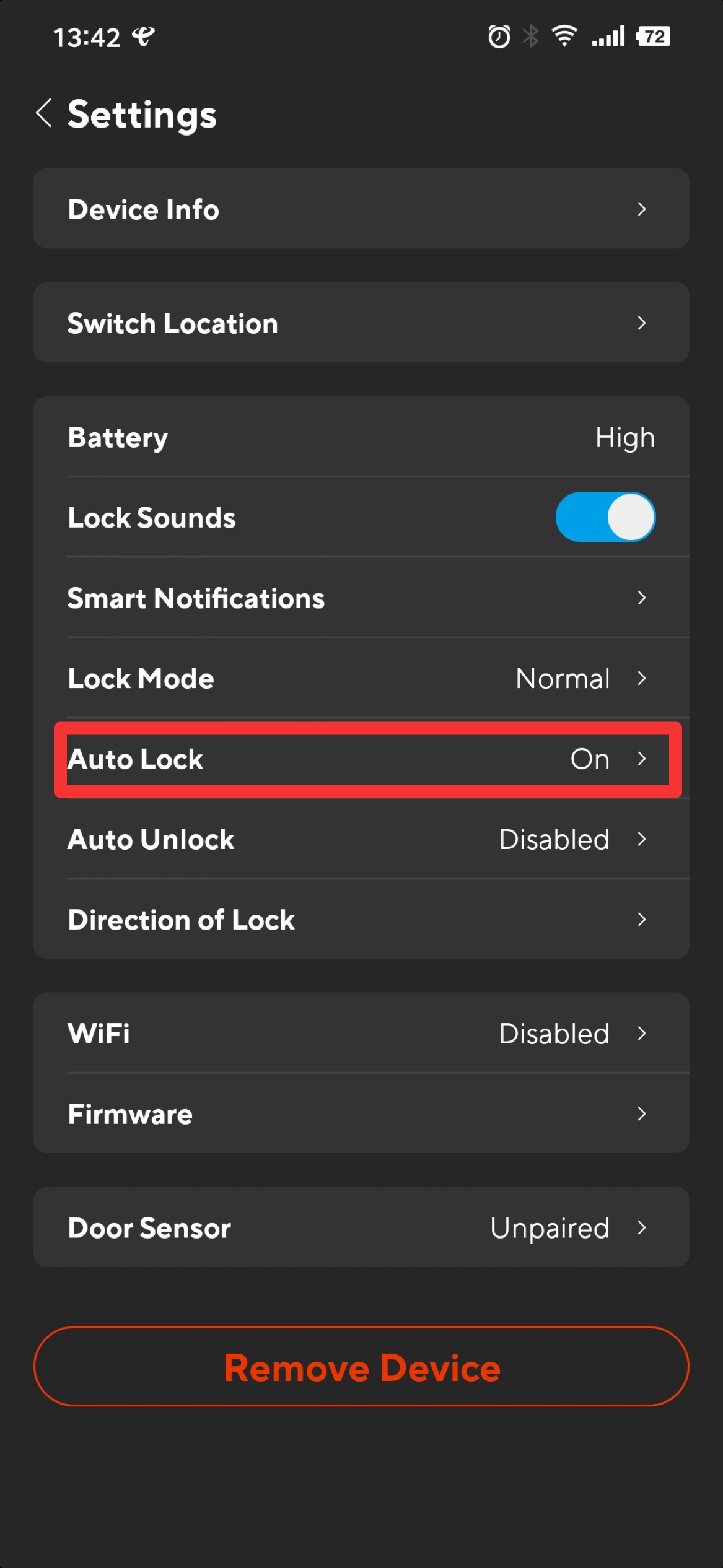

Step 2. Click the Settings menu (gear icon).

Step 3. Scroll to Auto Lock, then click it.

mceclip0.jpg     mceclip1.jpg

a)For U-Bolt / U-Bolt Pro:

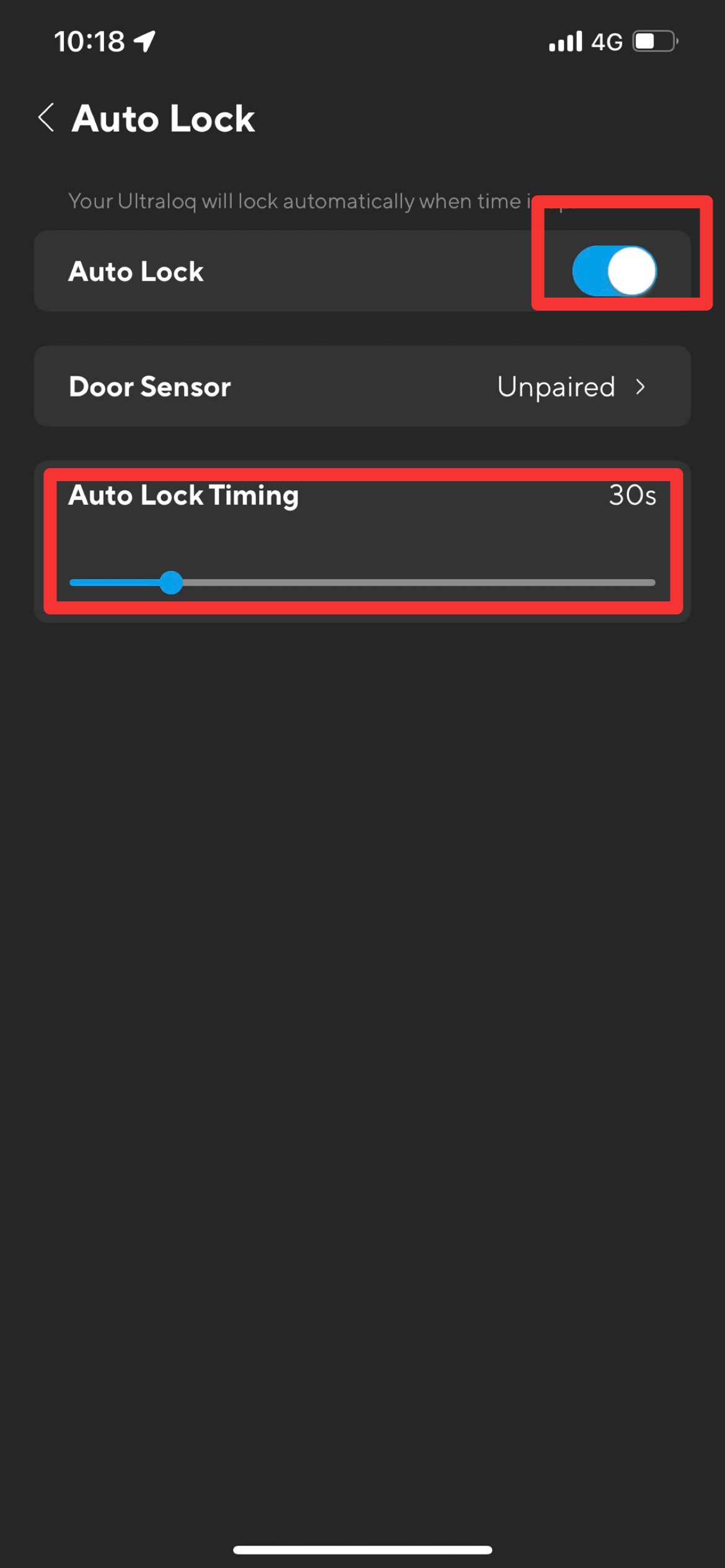

Please click Enable/Disable button or drag it to adjust the time.


b)For U-Bolt WiFi / U-Bolt Pro WiFi / U-Bolt Z-Wave / U-Bolt Pro Z-Wave/ Bolt Fingerprint / Bolt NFC:

Please make sure that you have paired the Door Sensor properly. Installation Guide of the Door Sensor

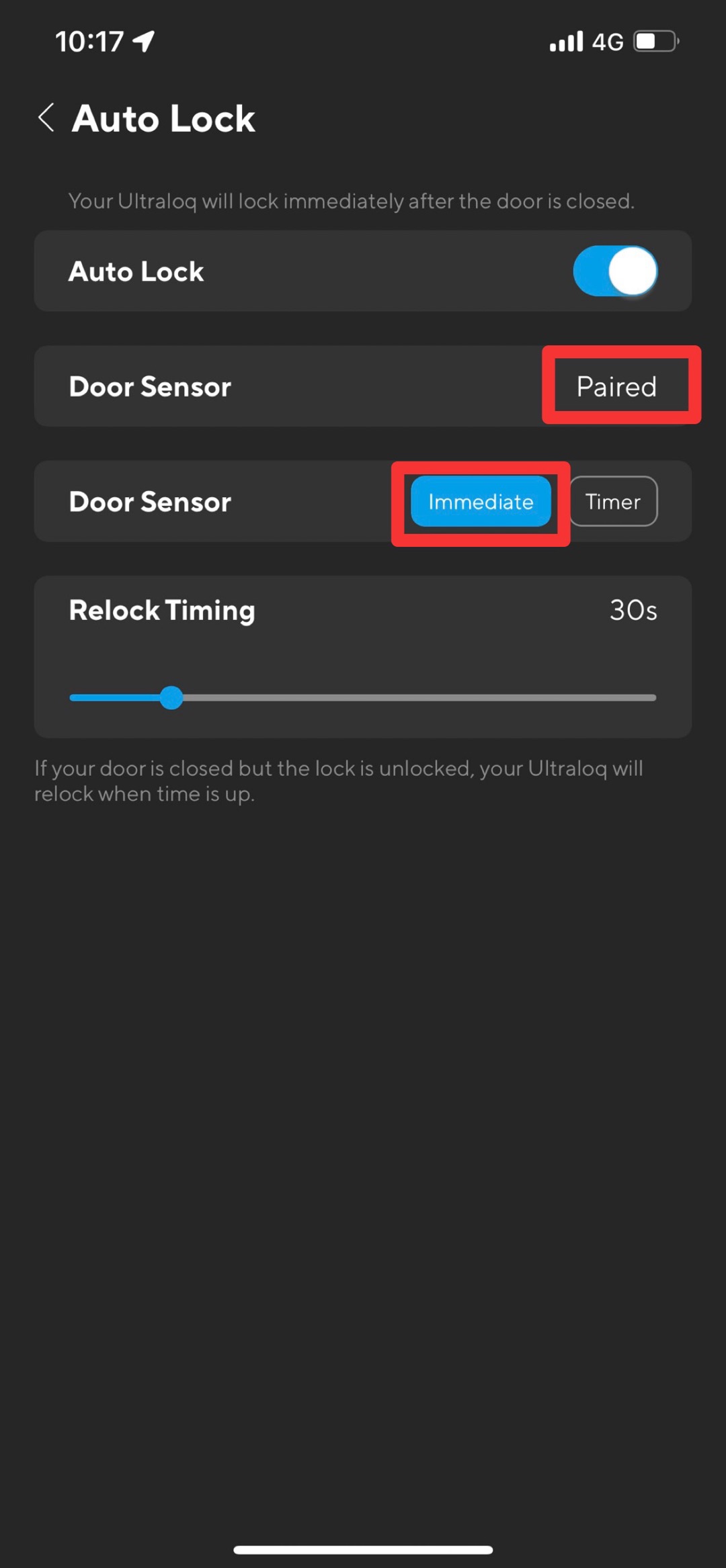

If you choose the Immediate mode, the lock will Auto Lock immediately after the door is closed.

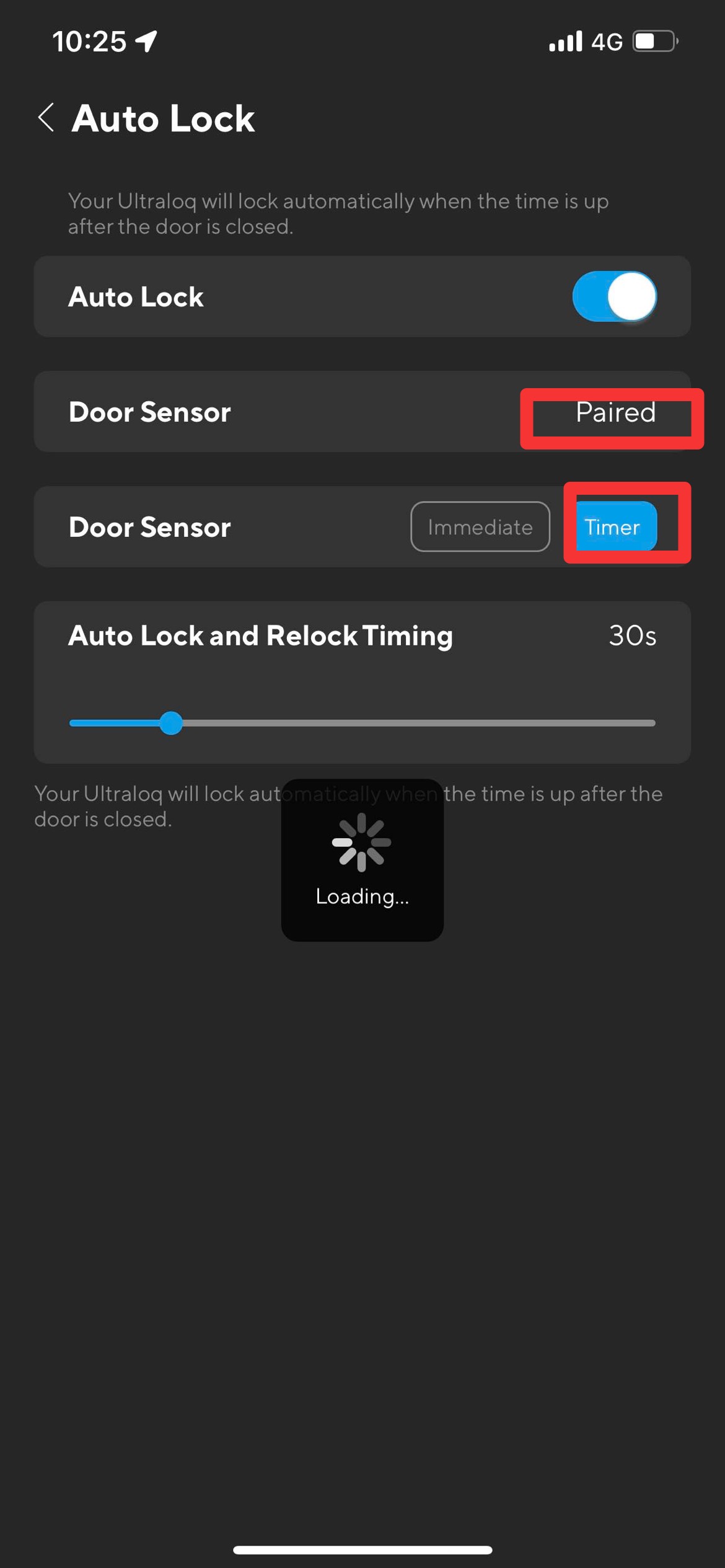

If you choose the On a timer mode, you can slide the line to adjust the time of the Auto Lock.

mceclip3.jpg     mceclip4.jpg

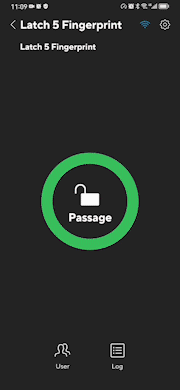

Auto lock can’t be turned off in the app for lever locks, including Ultraloq Latch 5 SeriesUltraloq UL3 Series, Lever, UL1, and UL300. To disable this feature, you need to switch to passage mode in the app by accessing the settings and selecting lock mode followed by passage. How to Set Up Ultraloq Smart Lock Passage/Lockout Mode?

Unlike deadbolt locks, the lever lock's latch will always stay locked even if the lock is changed to passage mode or within the setup time of the auto lock. To open the door, simply push down on the handle.

Standalone Mode Operation:

Enable: Please keep your U-Bolt and U-Bolt Pro Unlocked and press the "1" button for 3 seconds until LED turns green and the "1" button blinks. The Auto Lock will be enabled for 30 seconds as a default.

Disable: Please keep your U-Bolt and U-Bolt Pro Unlocked and press the "0" button for 3 seconds until LED turns green and the "0" button blinks.

Note:

> Enable/Disable Auto Lock via Keypad is only available for Ultraloq U-Bolt Series in Standalone Mode, and no Door Sensor has been installed or disabled the Door Sensor function already.

> If you need to adjust the Auto Lock time, you must operate by the U-tec App.

Related FAQs: The lock will not Auto Lock after the door closed. What should I do?
