The traditional way
Physical Key Handoffs
Every new user needs a key in hand, and access changes require collecting it again.
- Carry and hand over physical keys
- Coordinate key pickup and return
- Keep as a dependable backup

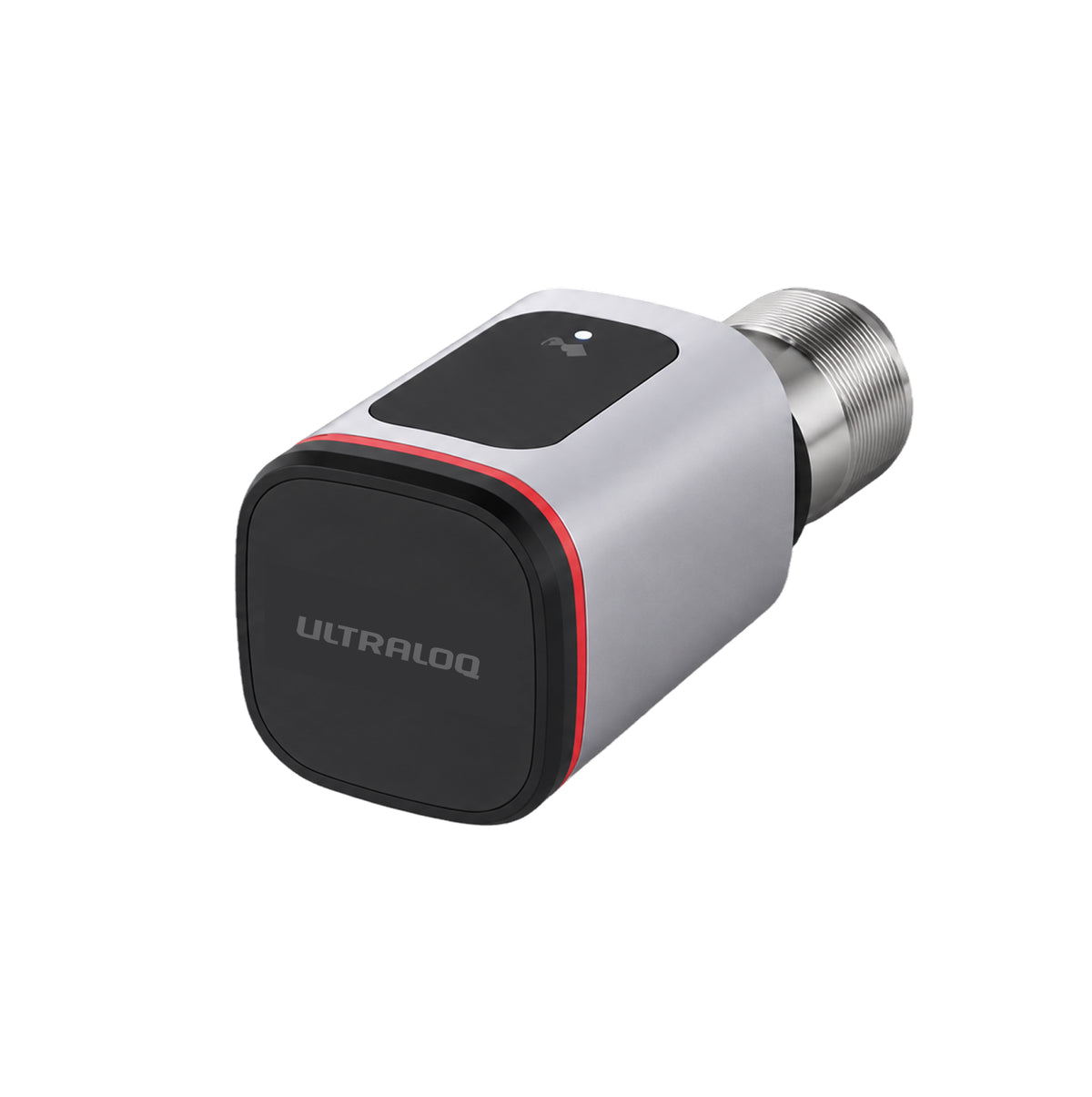

Smart Cylinder
US Cylinder

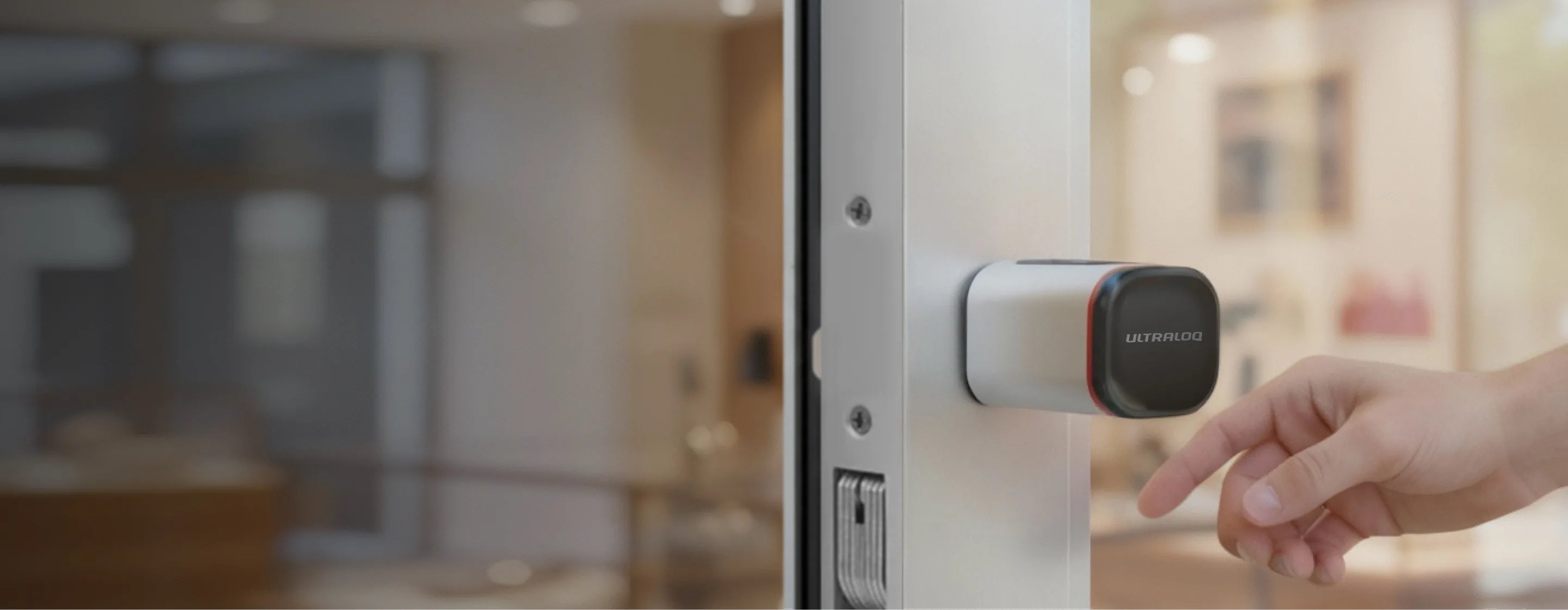

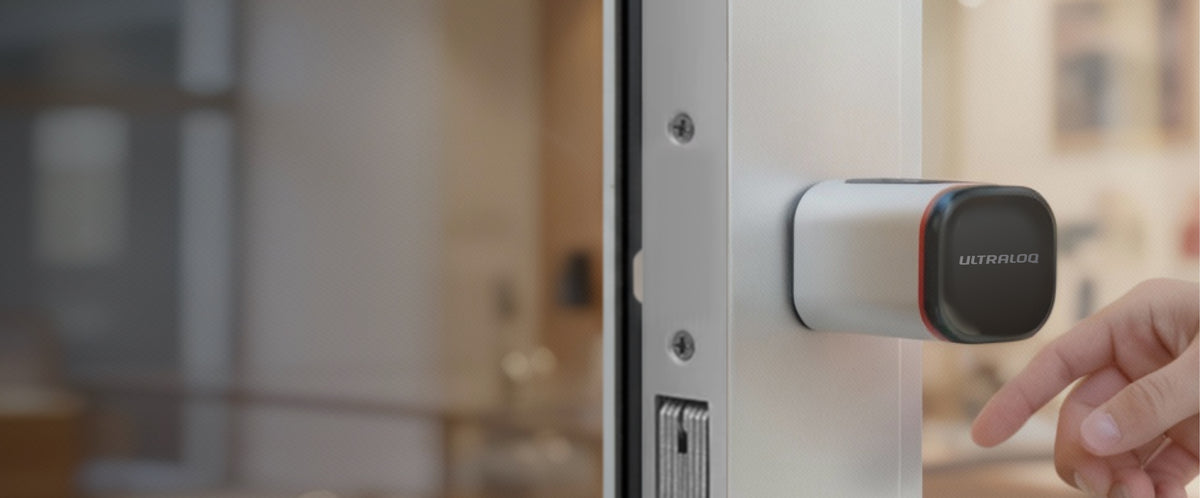

ULTRALOQ US Cylinder is a smart cylinder upgrade for compatible storefront and narrow-stile doors using a supported US mortise cylinder setup. It lets you add app-based keyless access to compatible commercial-style doors while keeping...
$249.99
US Cylinder
$249.99

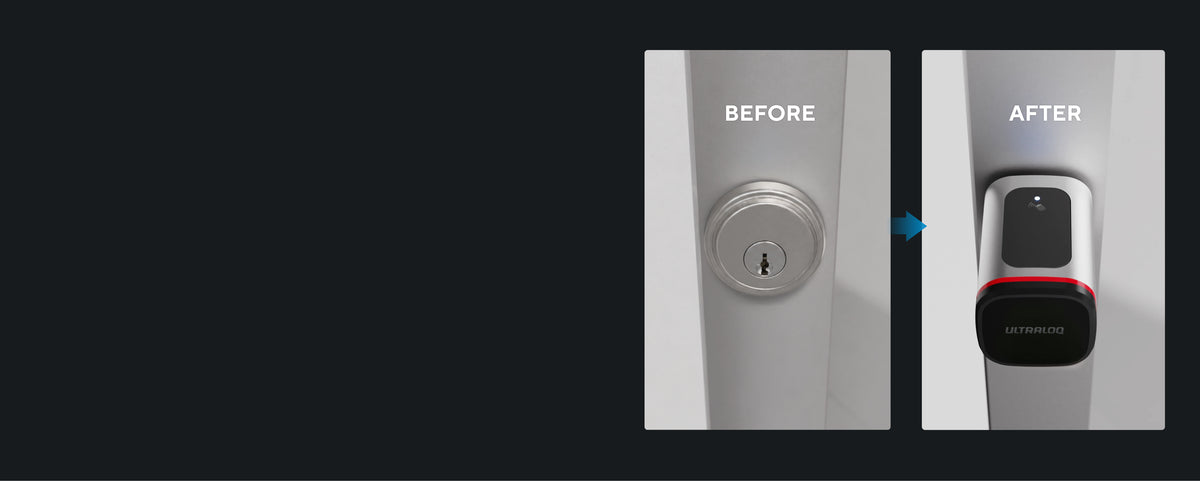

Upgrade Your Existing Lock to Smart in Minutes.
Designed for compatible storefront and narrow-stile doors using a supported US mortise cylinder setup.
US Cylinder replaces a compatible US mortise cylinder, not the complete lock or door hardware. Confirm the cylinder setup before installation.
Keep the Door.
Keep the Lock Body.
Add smartphone access without replacing the mortise lock body already installed in the door. The mechanical key stays available as a dependable backup.
From Traditional Keys to
Smartphone Access.
Keep the mechanical key as a dependable backup while making everyday access easier to issue, use, and manage.
The smarter way
Smartphone Access
Unlock locally and share digital access through Xthings Home App without handing over another physical key.
- Unlock locally from your phone
- Issue timed digital access
- Review access records in the app
Share Access From Your Phone.
Shared users need Xthings Home app and access under the same cloud account structure. US Cylinder uses one employee role for shared users.
Digital access sharing

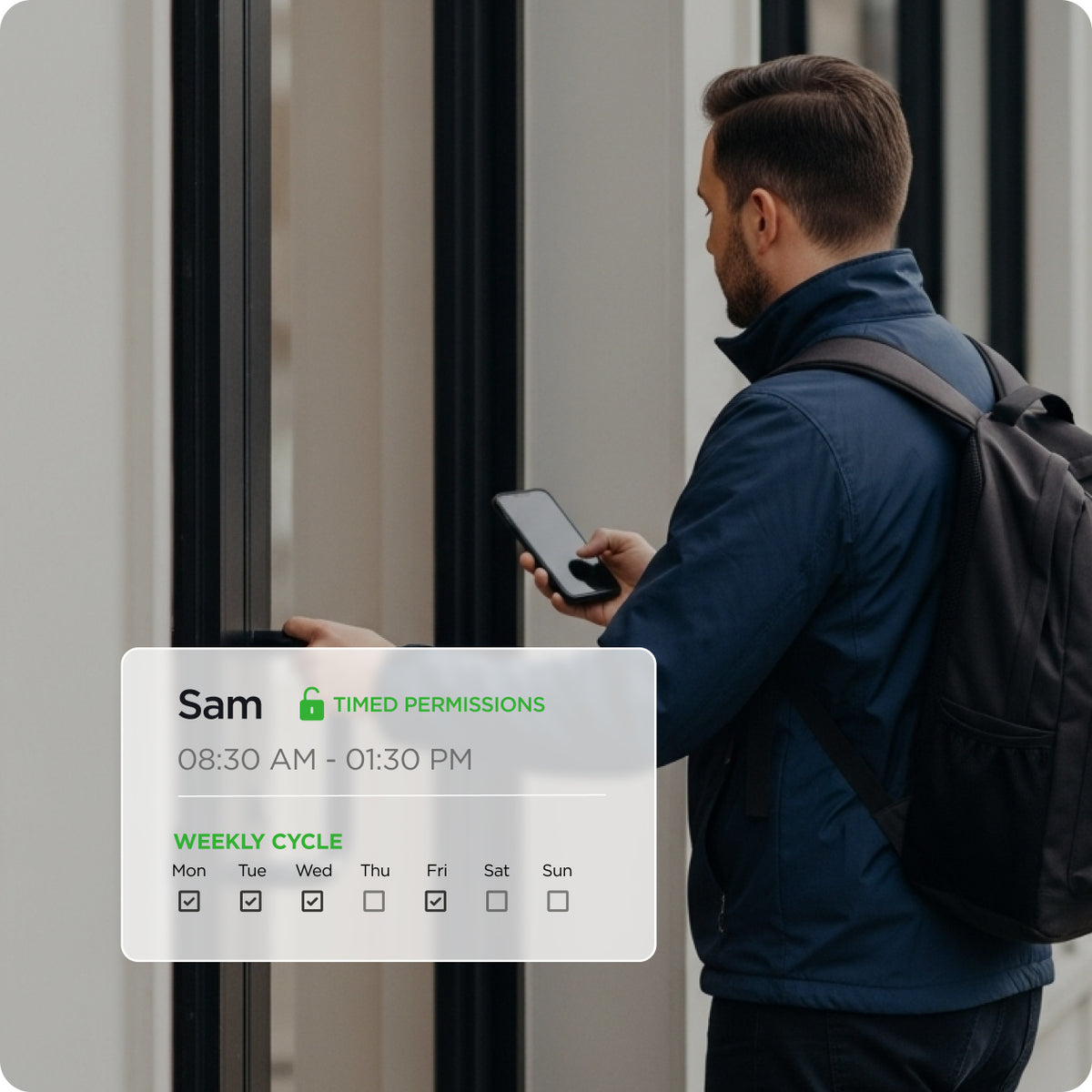

Timed permissions

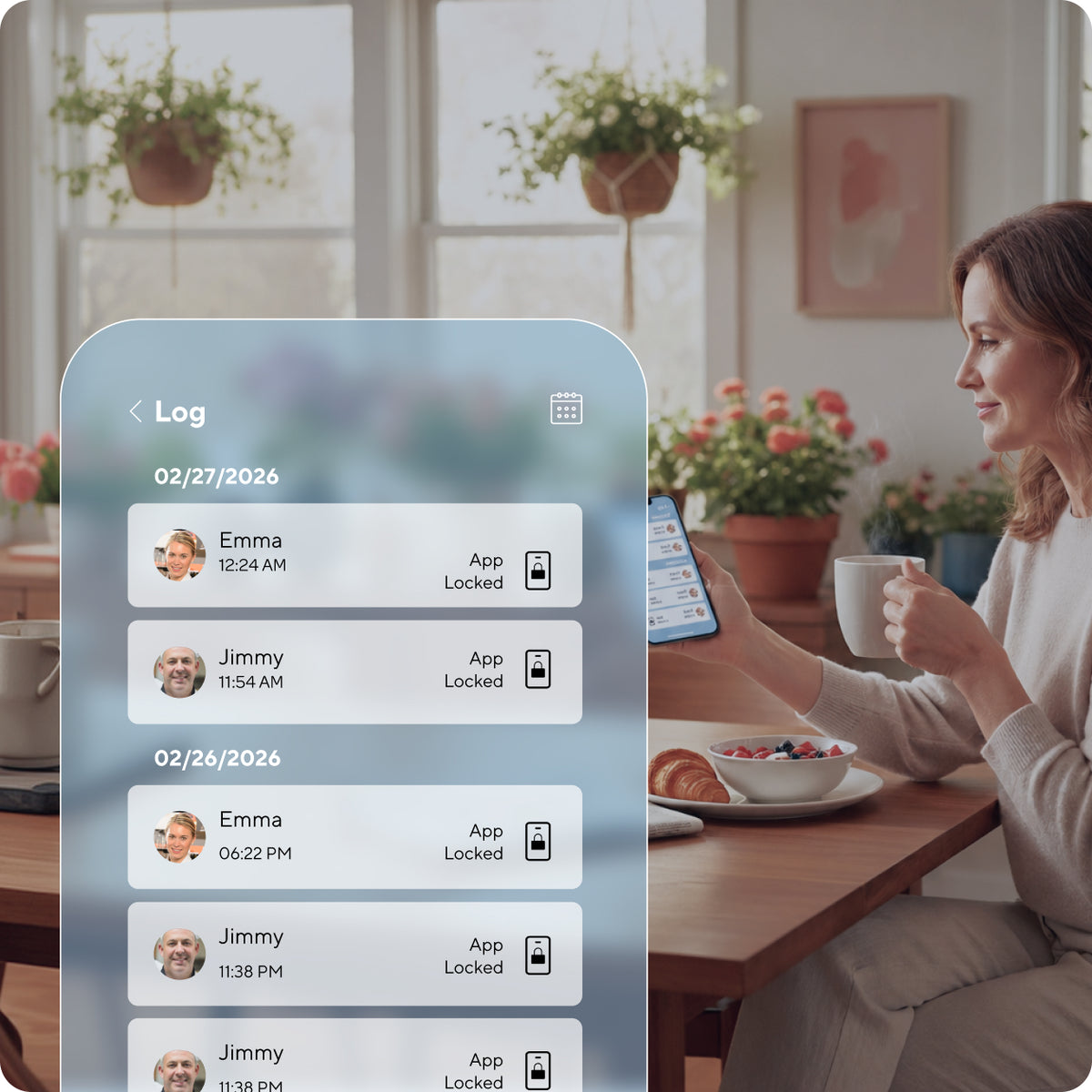

Access records
Single employee role
Digital access sharing
Timed permissions
Access records
Single employee role

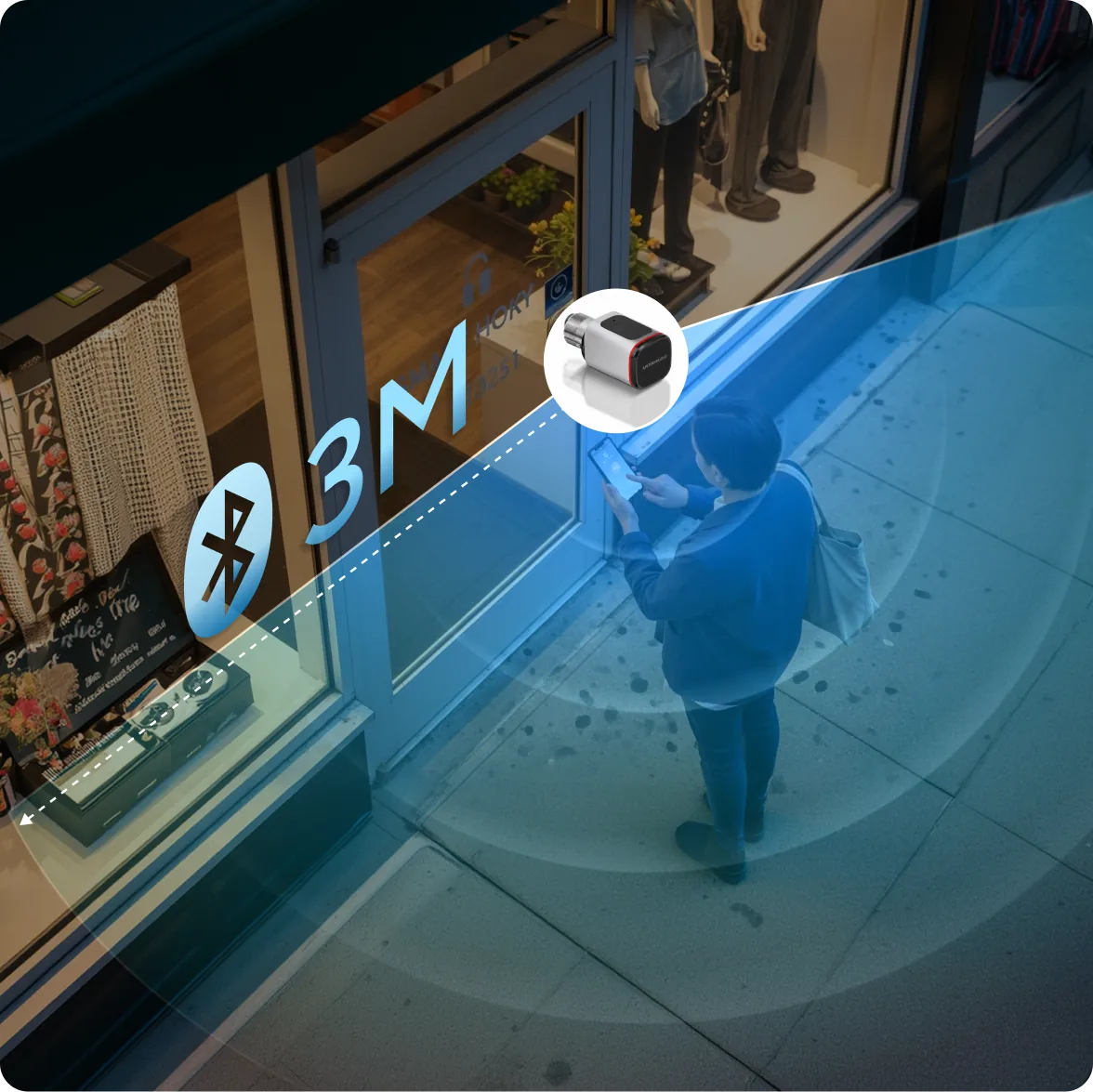

Designed for Local Bluetooth Control.
US Cylinder communicates with the phone app within approximately 3 meters. Permission changes can be created away from the lock, but a phone must return to Bluetooth range to synchronize them.
No Wi-Fi, remote unlocking, Matter, Apple Home, Alexa, or Google Assistant support.

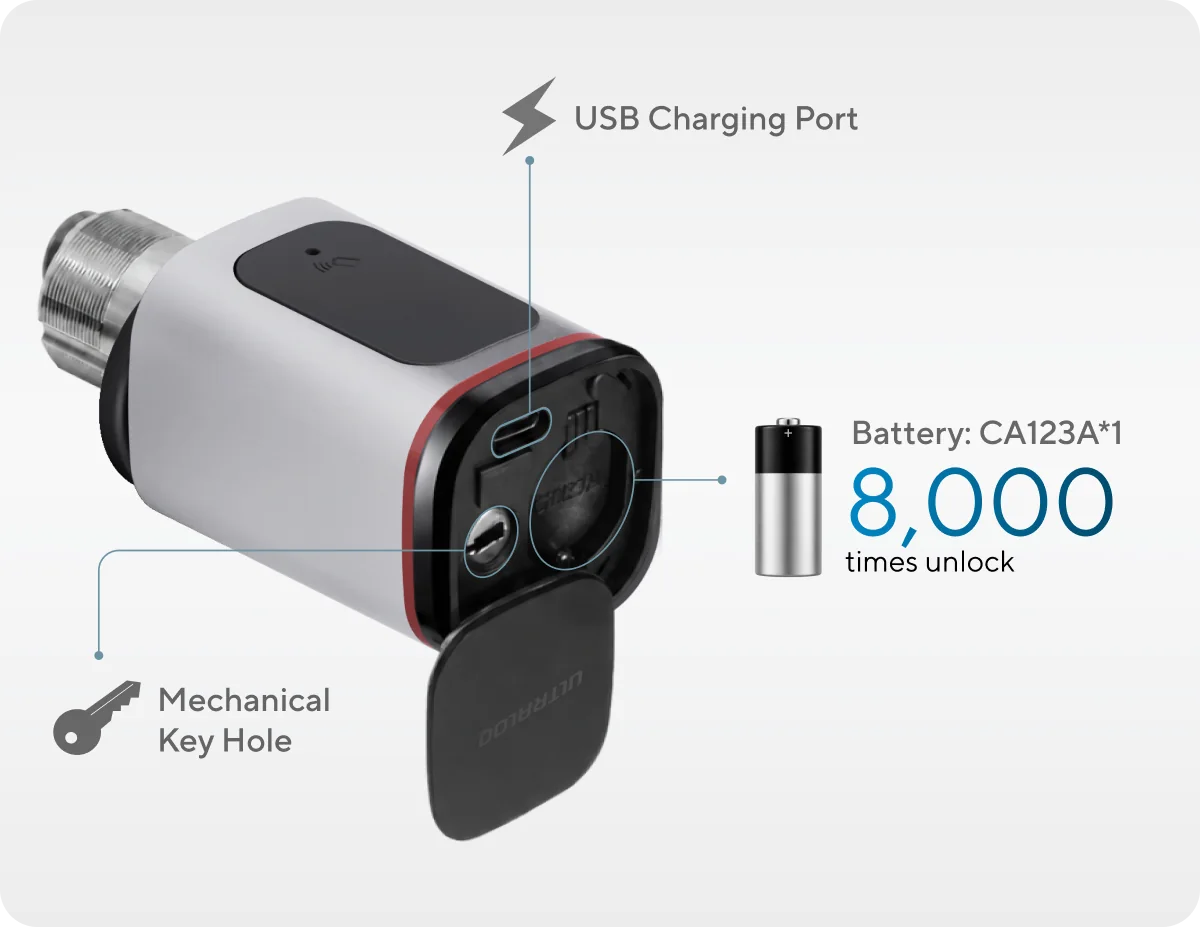

Power for Everyday Entry, With a Backup Plan.
One CR123A battery supports an estimated 8,000 unlock operations. A buzzer and red LED signal low power, while a 5V USB Type-C connection provides emergency power.
Keep the Lock Body.

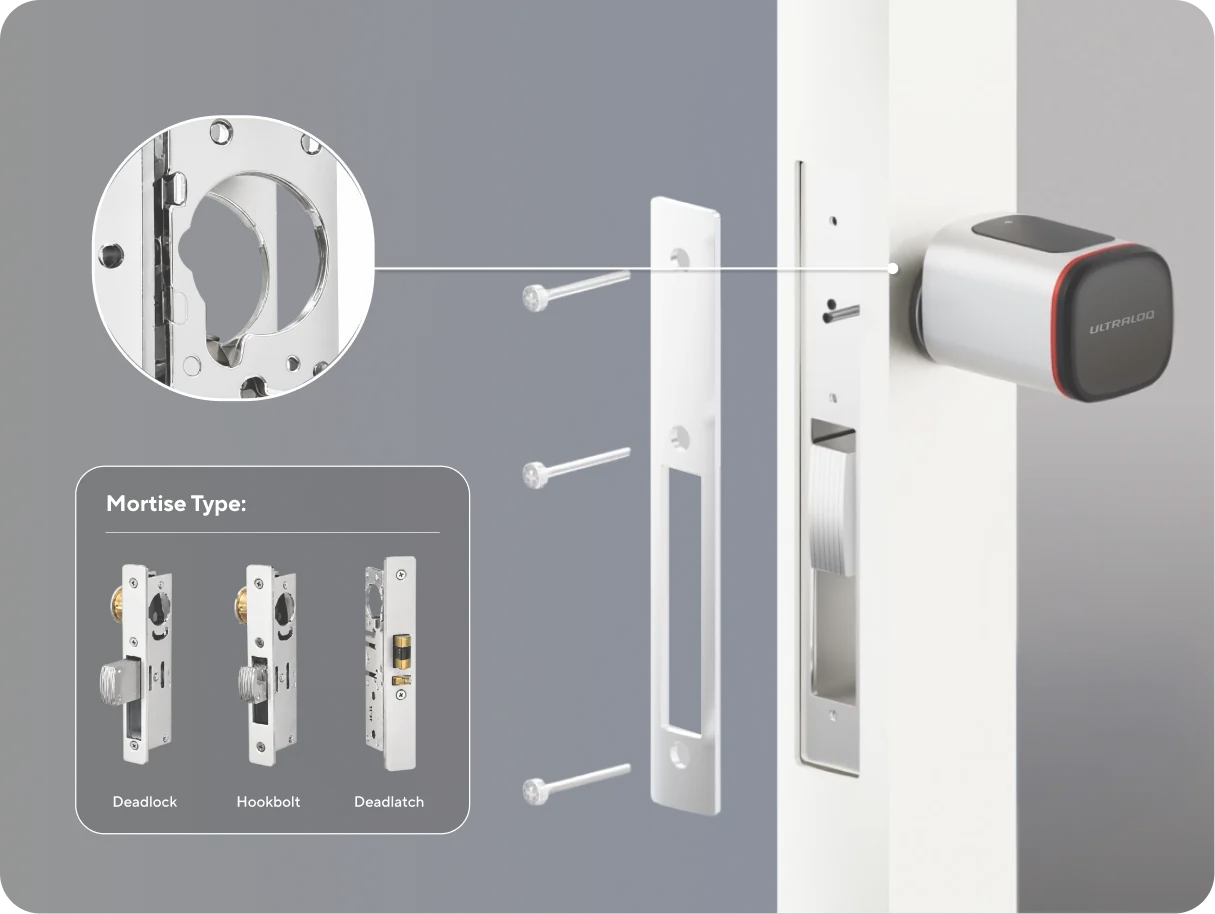

Upgrade in About 5 Mins.
Leave the existing mortise lock body in place. Remove the compatible cylinder, replace it with US Cylinder, and activate Bluetooth communication using common screwdrivers and the supplied tool.
Download Quick User Guide
Product Specifications
| Product | ULTRALOQ US Smart Cylinder | Model | US Cylinder |
|---|---|---|---|
| Unlocking | Xthings Home app; Mechanical key | Connectivity | Local Bluetooth; Approximately 3 m |
| Battery | 1 x CR123A | Estimated use | Up to approximately 8,000 unlock operations |
| Emergency power | 5V USB Type-C | Material and finish | Anodized aluminum; Matte silver |
| Operating temperature | -4°F ~ 149°F (-20°C ~ 65°C) | Warranty | 18 Months |
| Protection Level | IP 53, Not water resistant |

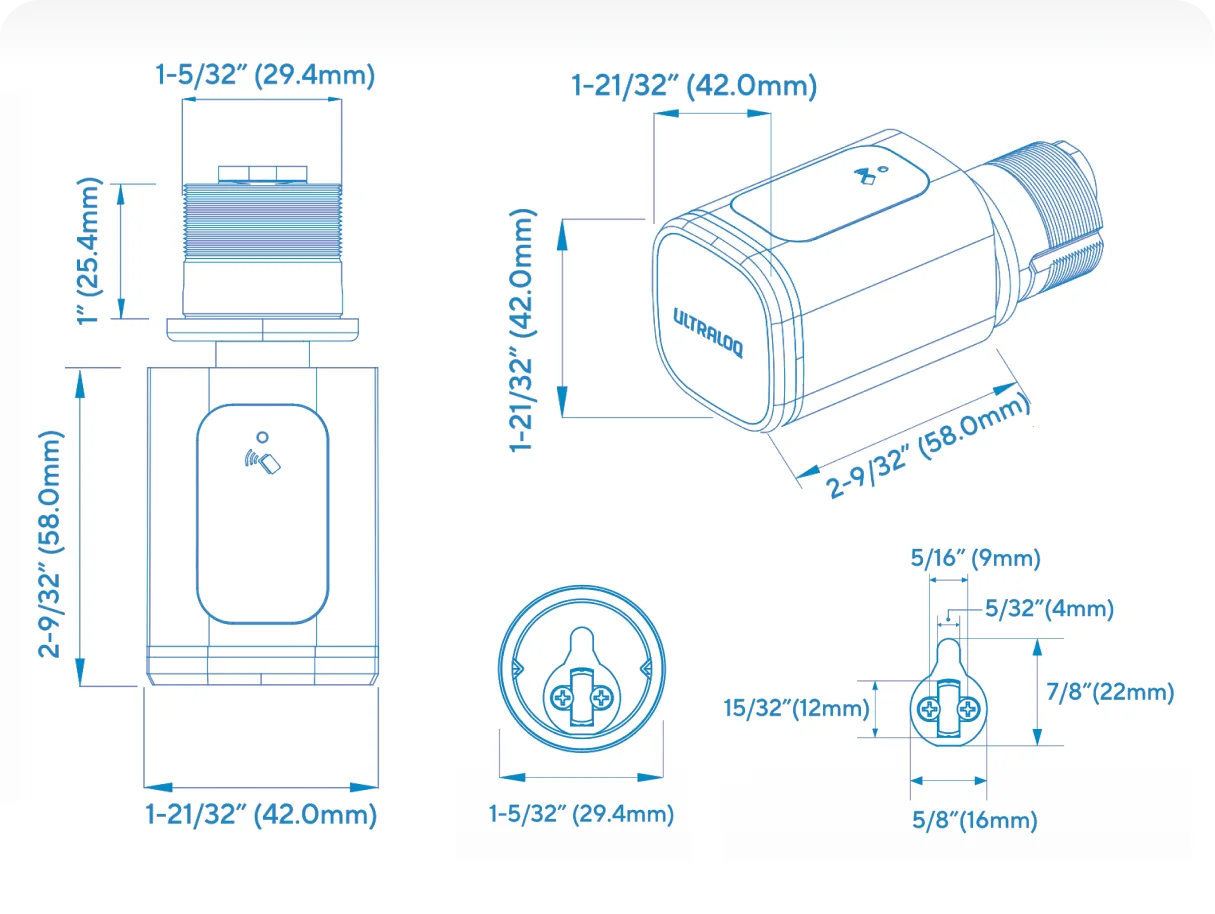

Before installation
Frequently Asked Questions
Is US Cylinder a complete storefront door lock?
No. It is a smart mortise cylinder designed to replace a compatible existing cylinder while retaining the mortise lock body.
Which doors are compatible?
It is intended for compatible storefront and narrow-stile doors using a supported US mortise cylinder setup. Confirm fit before installation.
Can the ULTRALOQ US Cylinder be installed outdoors?
Yes. The ULTRALOQ US Cylinder can be used in outdoor environments without condensation. However, it is rated IP53, not IP65, so it should be installed in a sheltered location protected from heavy rain, direct water spray, and prolonged exposure to moisture. It is not recommended for fully exposed or high-condensation outdoor installations.
Can I unlock it remotely?
No. App unlocking is local over Bluetooth within approximately 3 meters.
Does it work with smart-home platforms?
No. US Cylinder does not support Wi-Fi, Matter, Apple Home, Alexa, or Google Assistant.
What happens when the battery is low?
A buzzer and red LED provide a low-battery warning. You can use a mechanical key or supply 5V emergency power through USB Type-C.
What tools are required?
Use Phillips and flat-head screwdrivers together with the supplied installation tool.
Can it be rekeyed?
No. US Cylinder does not support rekeying.
