Ultraloq U-Bolt Series

U-Bolt

Specification

Connectivity Bluetooth, WiFi (Ultraloq Bridge is required)
Identification Mode Code and Bluetooth via smartphone
Fingerprint Sensor No
Remote Access Yes, Ultraloq Bridge is required
Door Sensor No
Micro-USB Backup Power Interface No
Working Temperature Exterior Assembly: -22 ̊F (-30 ̊C) to 149 ̊F (65 ̊C)
Dimension Exterior Assembly: 2.95 x 2.95 x 0.98 inch / 75 x 75 x 16 mm
Interior Assembly: 2.95 x 4.92 x 1.39 inch / 75 x 125 x 35.3 mm
User Capacity 60
Warranty 18 months electronic warranty and lifetime mechanical warranty
Documents U-Bolt Installation and User Guide V2.0 EN ES.pdf
Ultraloq U-Bolt Series Drill Template V1.6.pdf
Comparation with other smart locks >
  • Ultraloq U-Bolt Installation Guide

  • Ultraloq U-Bolt Pro | U-tec App Setup

  • Ultraloq U-Bolt | Standalone Mode Setup

U-Bolt Pro

Specification

Connectivity Bluetooth, WiFi (Ultraloq Bridge is required)
Identification Mode Fingerprint, Code and Bluetooth via smartphone
Fingerprint Sensor 360° Live Capacitive Sensor / Max of 120 fingerprints
Remote Access Yes, Ultraloq Bridge is required
Door Sensor No
Micro-USB Backup Power Interface Yes
Working Temperature Exterior Assembly: -22 ̊F (-30 ̊C) to 149 ̊F (65 ̊C)
Dimension Exterior Assembly: 2.95 x 2.95 x 1.22 inch / 75 x 75 x 31 mm
Interior Assembly: 2.95 x 4.92 x 1.39 inch / 75 x 125 x 35.3 mm
User Capacity 50
Warranty 18 months electronic warranty and lifetime mechanical warranty
Documents U-Bolt Pro Installation and User Guide V2.1 EN ES.pdf
Ultraloq U-Bolt Series Drill Template V1.6.pdf
Comparation with other smart locks >
  • Ultraloq U-Bolt Pro | Installation Guide

  • Ultraloq U-Bolt Pro | U-tec App Setup

  • Ultraloq U-Bolt Pro | Standalone Mode Setup

U-Bolt WiFi

Specification

Connectivity Bluetooth, WiFi
Identification Mode Code and Bluetooth via smartphone
Fingerprint Sensor No
Remote Access Yes
Door Sensor Yes
Micro-USB Backup Power Interface No
Working Temperature Exterior Assembly: -22 ̊F (-30 ̊C) to 149 ̊F (65 ̊C)
Dimension Exterior Assembly: 2.95 x 2.95 x 0.98 inch / 75 x 75 x 16 mm
Interior Assembly: 2.95 x 4.92 x 1.39 inch / 75 x 125 x 35.3 mm
User Capacity 60
Warranty 18 months electronic warranty and lifetime mechanical warranty
Documents U-Bolt WiFi User Guide V1.0.pdf
Ultraloq U-Bolt Series Drill Template V1.6.pdf
Comparation with other smart locks >
  • U-Bolt WiFi Installation Guide

  • U-Bolt WiFi Standalone Mode Programming

  • U-Bolt WiFi App Mode Programming

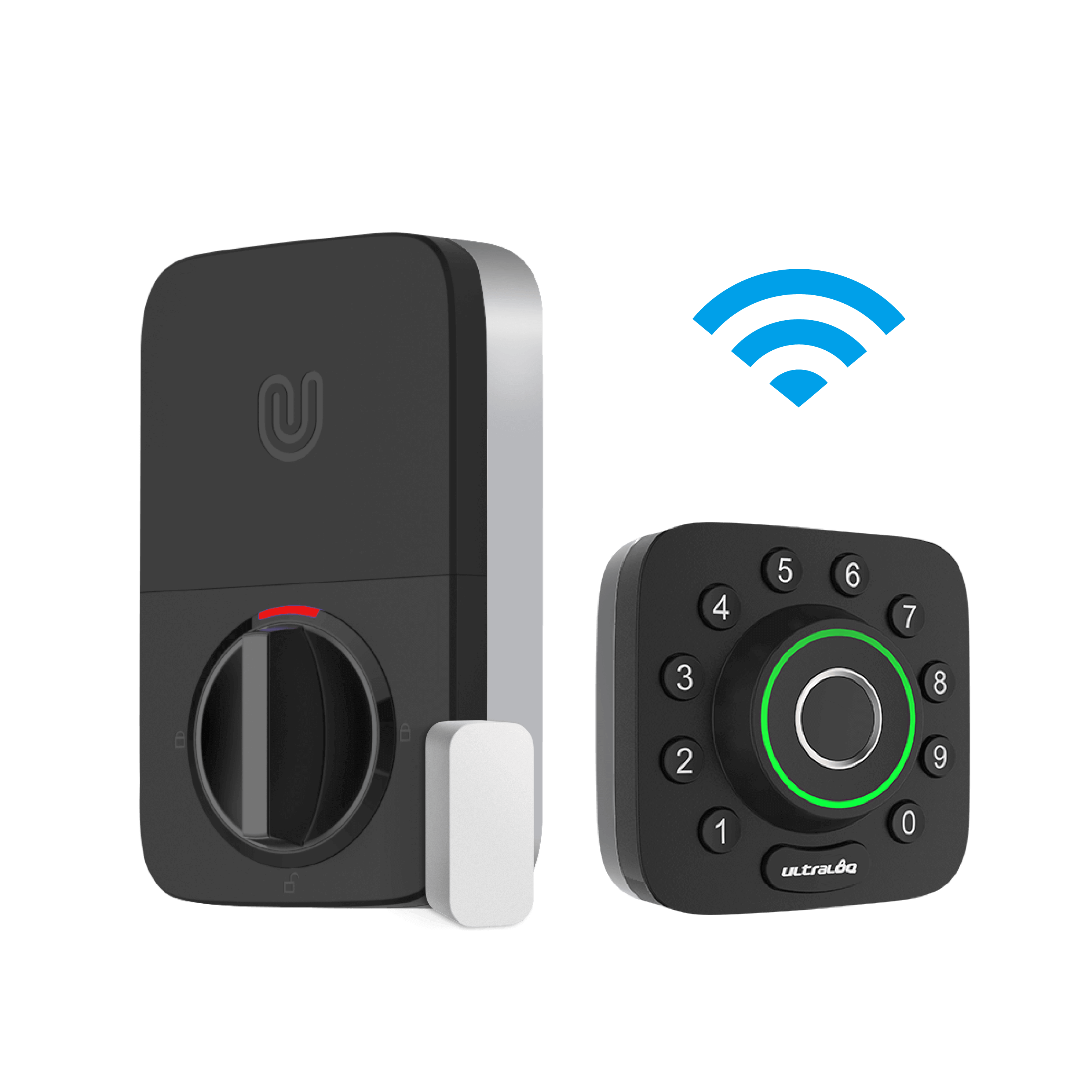

U-Bolt Pro WiFi

Specification

Connectivity Bluetooth, WiFi
Identification Mode Fingerprint, Code and Bluetooth via smartphone
Fingerprint Sensor 360° Live Capacitive Sensor / Max of 120 fingerprints
Remote Access Yes
Door Sensor Yes
Micro-USB Backup Power Interface Yes
Working Temperature Exterior Assembly: -22 ̊F (-30 ̊C) to 149 ̊F (65 ̊C) IP65 Rated
Dimension Exterior Assembly: 2.95 x 2.95 x 1.22 inch / 75 x 75 x 31 mm
Interior Assembly: 2.95 x 4.92 x 1.39 inch / 75 x 125 x 35.3 mm
User Capacity 50
Warranty 18 months electronic warranty and lifetime mechanical warranty
Documents U-Bolt Pro WiFi Installation and User Guide V1.4 EN ES.pdf
Ultraloq U-Bolt Series Drill Template V1.6.pdf
Comparation with other smart locks >
  • U-Bolt Pro WiFi Installation Guide

  • U-Bolt Pro WiFi Standalone Mode Programming

  • U-Bolt Pro WiFi App Mode Programming

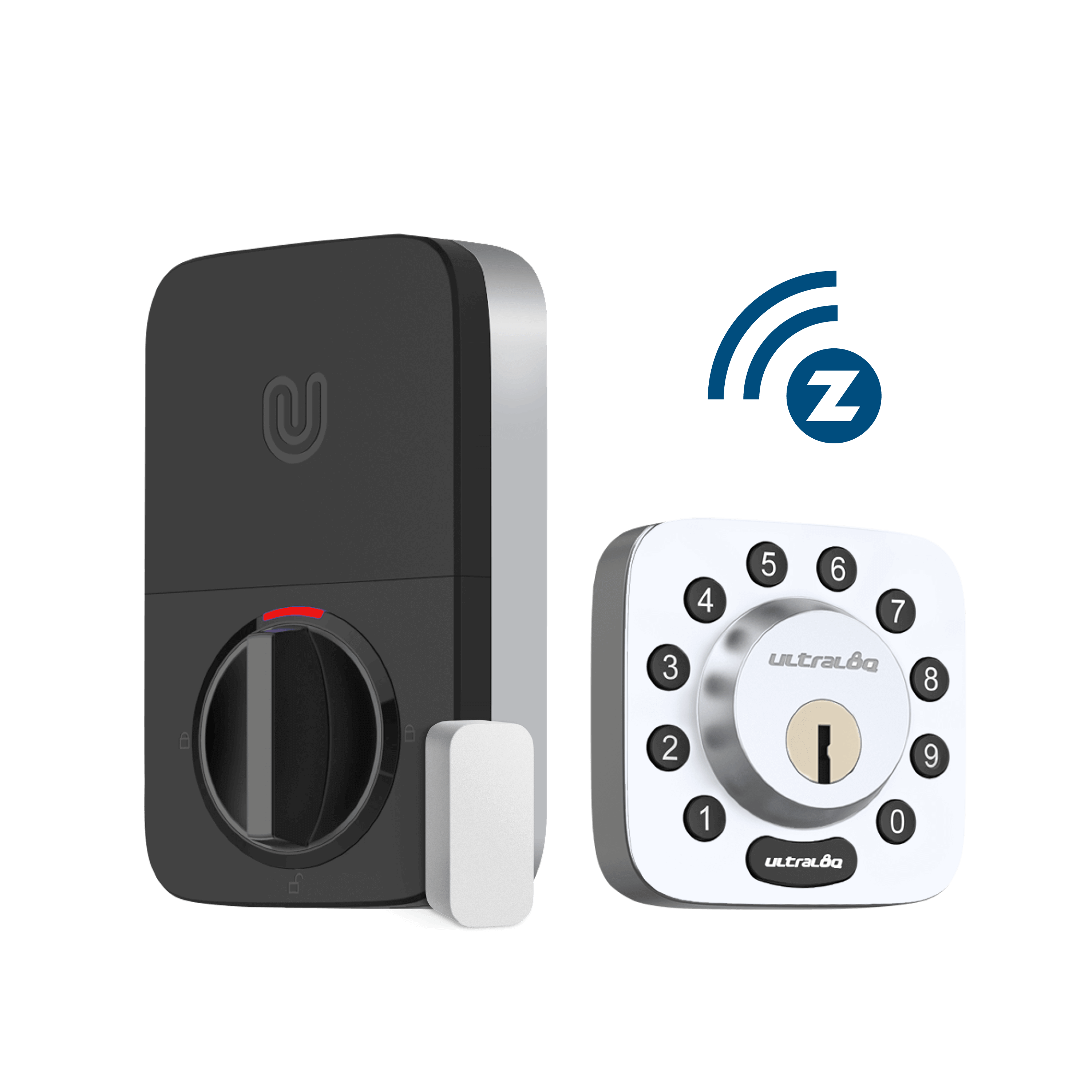

U-Bolt Z-wave

Specification

Connectivity Bluetooth, Z-Wave
Identification Mode Code, Bluetooth and Z-Wave via smartphone
Fingerprint Sensor No
Remote Access Yes, Z-Wave hub is required
Yes, Ultraloq Bridge is required
Door Sensor Yes
Micro-USB Backup Power Interface No
Working Temperature Exterior Assembly: -22 ̊F (-30 ̊C) to 149 ̊F (65 ̊C)
Dimension Exterior Assembly: 2.95 x 2.95 x 0.98 inch / 75 x 75 x 16 mm
User Capacity 60
Warranty 18 months electronic warranty and lifetime mechanical warranty
Documents U-Bolt Z-Wave Installation and User Guide V2.2 EN ES.pdf
Z-Wave & Door Sensor-Quick Guide-V1.2 EN ES.pdf
Comparation with other smart locks >
  • U-Bolt Z-Wave Installation Guide

  • U-Bolt Z-Wave Standalone Mode Programming

  • U-Bolt Z-Wave App Mode Programming

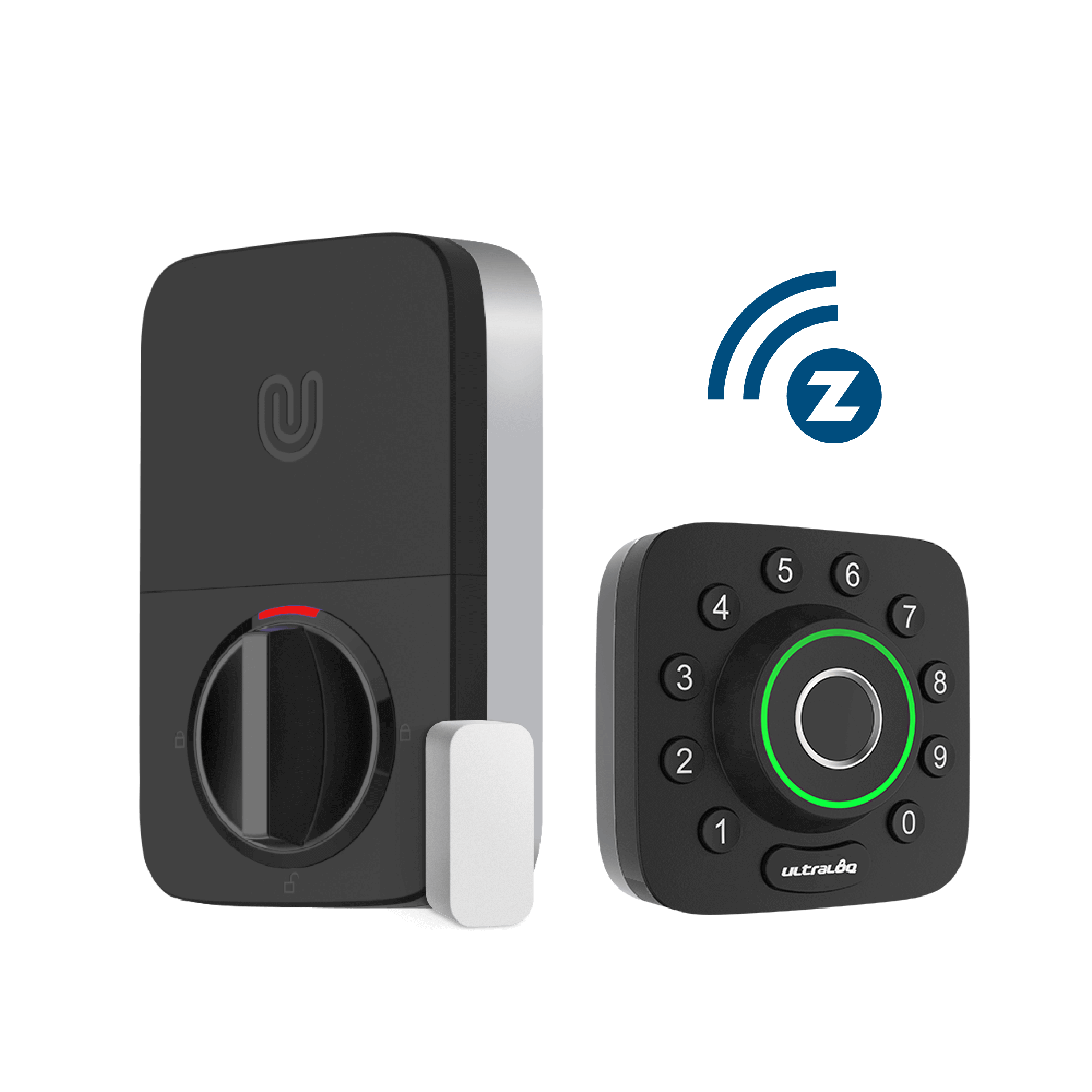

U-Bolt Pro Z-wave

Specification

Connectivity Bluetooth, Z-Wave
Identification Mode Fingerprint, Code, Bluetooth and Z-Wave via smartphone
Fingerprint Sensor 360° Live Capacitive Sensor / Max of 120 fingerprints
Remote Access Yes, Z-Wave hub is required
Yes, Ultraloq Bridge is required
Door Sensor Yes
Micro-USB Backup Power Interface Yes
Working Temperature Exterior Assembly: -22 ̊F (-30 ̊C) to 149 ̊F (65 ̊C) IP65 Rated
Dimension Exterior Assembly: 2.95 x 2.95 x 1.22 inch / 75 x 75 x 31 mm
User Capacity 50
Warranty 18 months electronic warranty and lifetime mechanical warranty
Documents U-Bolt Pro Z-Wave Installation and User Guide V2.4 EN ES.pdf
Z-Wave & Door Sensor-Quick Guide-V1.2 EN ES.pdf
Comparation with other smart locks >
  • U-Bolt Pro Z-Wave Installation Guide

  • U-Bolt Pro Z-Wave Standalone Mode Programming

  • U-Bolt Pro Z-Wave App Mode Programming
